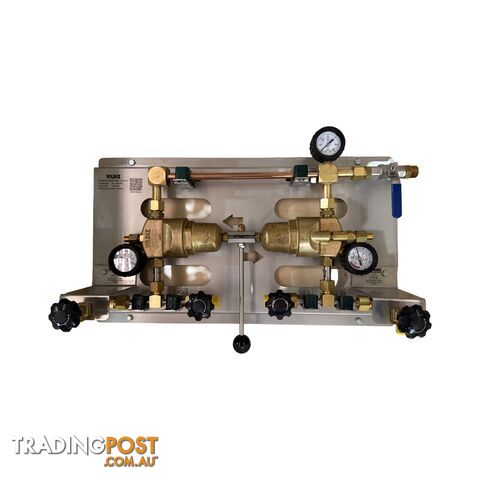

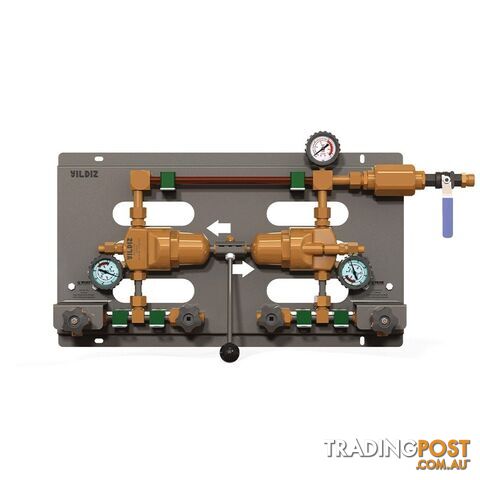

Semi-Automatic Manifold System Yildiz MR1100CO-40

SEMI-AUTOMATIC MANIFOLD SYSTEM YILDIZ MR1100CO-40

DESCRIPTION:

In enterprises where the central system is installed and available, the pressure of the gas coming from the source (fixed or mobile, tube pallets, cylinders, or special containers) is reduced to the pressure level required by the central system with the high-pressure manifold with a regulator.

FEATURES:

It offers high compressed gas (O, D, N, CO2) up to 600 Nm3 /h and up to 230 bar inlet pressure.
A maximum inlet pressure of 230 bar is reduced to outlet levels of 10 bar, 20 bar, or 40 bar.
Equipped with 2 cylinder connections with valves, suitable for use with individual cylinders or cylinder bundles.
Extension connections on both inlet sides allow additional cylinders or bundles to be connected to the system by purchasing extra cylinder valve connections.
While one side of the system is operating, the other side remains on standby. When the cylinder or bundle is emptied, the gas flow automatically switches to the other side, ensuring uninterrupted operation.
The central lever can be turned upward or downward to select the active gas line.
All components of the system are mounted on a high-strength stainless steel sheet.
Thanks to the vent valves located on the inlet sides, the gas inside the system can be safely discharged before cylinder replacement or maintenance.
In oxygen systems, a flashback arrestor is installed before the ball valve on the outlet line.
Check valves located at both cylinder connection valves prevent gas backflow, thereby enhancing system safety.
Thanks to its compact design, it occupies minimal space while its cost-effective structure reduces investment expenses.
The safety relief devices located in the pressure regulators ensure safe venting of excess pressure in case of malfunction.

MATERIALS:

Body: Brass (Forged)
Diaphragm: Stainless Steel (10-20 Bar Outlet) / Piston Type (40 Bar Outlet)
Cover: Brass (Forged)
Pressure-adjusting screw: Stainless Steel
Inlet Filter: Bronze & Sintered Stainless Steel
Connectors and Fittings: Brass, Stainless Steel
Plate: Stainless steel
Ball Valve: Stainless Steel

REFRENCE STANDARD:

ISO 7291: Gas welding equipment - Pressure regulators for manifold systems used in welding, cutting, and allied processes up to 300 bar
ISO 5171: Gas welding equipment Pressure gauges used in welding, cutting, and allied processes
ISO 9539: Gas welding equipment - Materials for equipment used in gas welding, cutting, and allied processes
ISO 9090: Gas tightness of equipment for gas welding and allied processes.

FLOW CHARACTERISTICS:

Product:  MR1100CO-40    Inert
Gas Type Standard:  EN ISO 7291
Inlet Connection:  W21,80x1/14
Outlet Connection:  G 3/4 Male
Inlet Pressure:  0-230 bar
Outlet Pressure:  40 bar
Flow Rate (Q1): 500 m3/h



Part Number/SKU: MR1100CO-40
