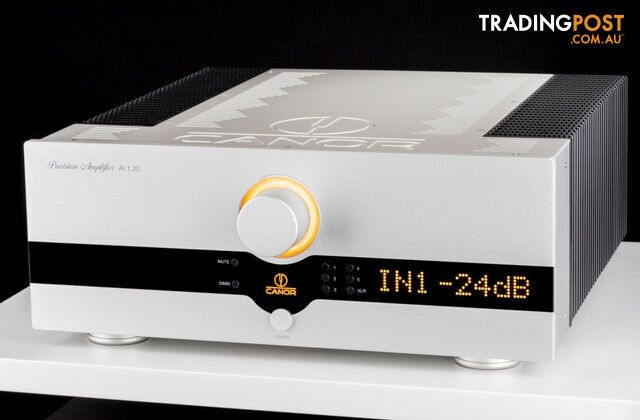

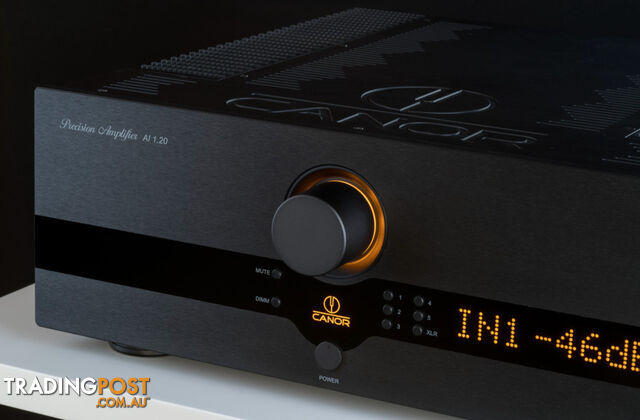

Canor AI 1.20 Integrated Solid State Amplifier

Introducing the A1 1.20

The Premium Line Integrated Solid-State Amplifier from Canor



CANOR AI 1.20 is an integrated solid-state amplifier in pure class-A up to 50 W per channel with a relay attenuator with two standalone blocks for each channel.

Highlights
Operates in a pure class A
264 000 uF of total filtering capacitance
Possibility to create a monoblock connection of two units.
Heat Disposal

Canor used a special copper plate for heat dissipation, which is installed on the heatsink and the power transistors are installed directly on the given copper plate

Dual-Mono Connection

Dual-mono connection – each channel has its own power transformer. Power transformers are located in separate parts of the device.

Amplifier design

A shielded tunnel passes through the centre of the AI 1.20 amplifier, in which filters with nano crystalline coils are located. In addition, the input circuits are equipped with low-noise j-p transistors.

Monoblock Connection

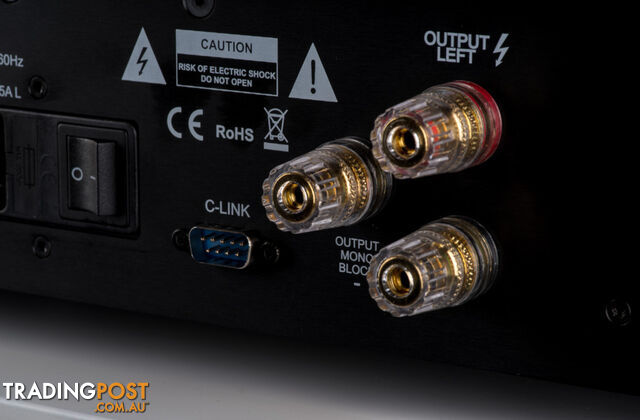

For even better performance and sound, it is possible to connect AI 1.20 as monoblocks using a data cable. One unit becomes the “master” unit and the other the “slave”.

This is the so-called bridge connection of two amplifiers (a fully symmetrical connection).

Product Features
An integrated solid-state amplifier in pure class-A up to 50 W per channel
Relay attenuator with two standalone blocks for each channel
PCB’s utilise Canor's premium CMT™ technology (CANOR® PCB Milling Technology), it is the way we mill printed circuit boards
CMT™ technology originated in a long-standing endeavour to improve the sonic performance of our products
Power supply units with filtered out interfering signals from the mains supply
Interference-rejection and as small as possible leakage field ensure custom-wound toroidal transformers
264 000 uF of filtering capacitance simulates a nearly stabilised supply voltage
Option of synchronous control enables the use of two amplifiers in a monoblock mode without the need of using an extra preamplifier and that is a Master/Slave mode with an output power of 100W per channel
Technical Specifications

Stereo Output Power
2 x 50 W / 4 Ω
2 x 30 W /  8 Ω

Monoblock Output Power
1 x 130 W / 4 Ω
1 x 100 W / 8 Ω

Gain
30 dB

Frequency Range
20 – 25 000 Hz ± 0.5 dB / 5 W

Input Impedance
30 kΩ

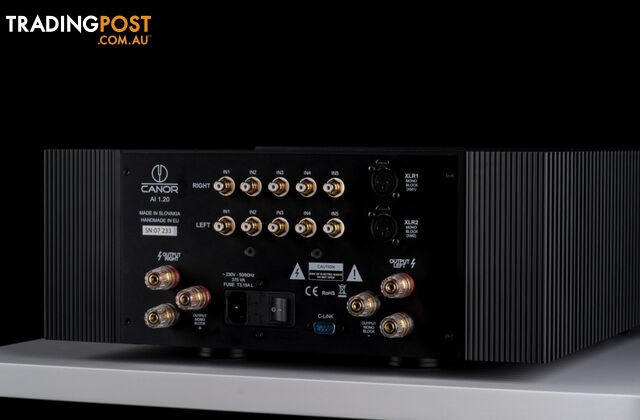

Inputs
5 x RCA
2 x XLR (XLR active in monoblock connection only)

Total Harmonic Distortion
Signal-to-Noise Ratio
> 90 dB

Signal-to-Noise Ratio Monoblock
> 100 dB

Filtration Capacity
132 000uF / 35V (per channel)

Damping factor at 4 Ω load at the output
250 (based on measured output impedance)

Damping factor at 8 Ω load at the output
500 (based on measured output impedance)

Power
230 V / 50 Hz / 375 VA

Dimensions (w x h x d)
435 x 170 x 485 mm

Weight (net)
28 Kg



*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change from Manufacturer without notice.

E&OE
