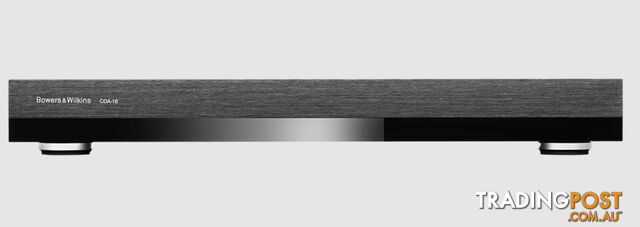

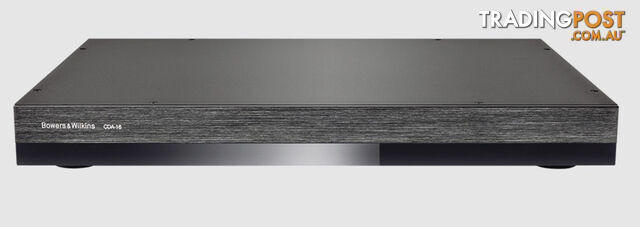

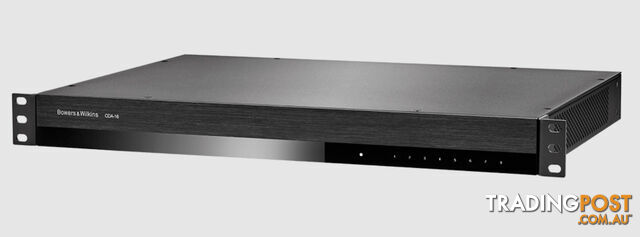

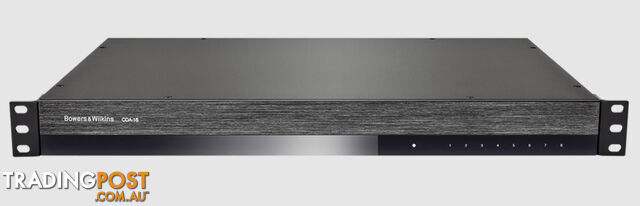

B&W CDA-16 Power Amplifier

Introducing the CDA 16 from Bowers & Wilkins
Don't Look. Listen.

Step into a world of crafted sound sophistication with the Bowers & Wilkins CDA-16 Distribution Amplifier - a game-changer in audio technology designed to amplify and distribute sound with unparalleled efficiency and quality.

Recognised for its top-tier performance, this powerful 16-channel distribution amplifier is engineered to drive an assortment of in-wall or in-ceiling custom installation loudspeakers in up to eight rooms simultaneously, making it nothing short of a powerhouse in a compact frame.

Exemplifying Bowers & Wilkins' commitment to quality, the CDA-16 can push any Bowers & Wilkins custom installation speaker to new peaks of performance.

The incredibly flexible design not only offers 16 channels of power but can also transform your home into an audiophile's paradise while maintaining minimal spatial footprint owing to its sleek 1U design.

Beyond its compact form factor, the CDA-16's capabilities don't stop at standard stereo channels; its configurable specification allows for bridging into more potent mono outputs, amplifying its duty to deliver indomitable sound.

With audio specifications that exceed expectations, an impressive signal to noise ratio, and a frequency response that ensures accuracy, the B&W CDA-16 Distribution Amplifier is built to blow the mind of the most discerning audiophile.

Ready to be amazed yet? Step into the world of refined audio with the exceptional power and unmatched flexibility of the Bowers & Wilkins CDA-16 Power Amplifier.

Key Features

16 Channel Power
With the ability to drive up to16 channels, the CDA-16 Distribution Amplifier is engineered for impressive, immersive audio across multiple rooms.

Compact and Efficient
Housed in a 1U compact design that is as sleek as it is hardy, the CDA-16 provides an impressive power output while maintaining a minimal spatial footprint.

Versatile Bridging
This advanced distribution power amplifier allows for bridging of its Class D stereo channels into more potent mono outputs, ensuring versatility for all your audio needs.

Top-of-the-Line Specifications
With a frequency response from Black
Finish
44.5kg (9.9lb)
Net weight
44.5 mm (1.8in) 1U
x 437 mm (17.2in) x 310 mm (12.2in)
Dimensions
1.7 BTU/hr (standby),150 BTU/hr (Idle),400 BTU/hr (max)
Thermal dissipation
100-240V 50/60Hz AC inlet IEC C14, switched
AC supply
Power consumption
1 x RCA (pair) Phono socket (global out)8 x 5.08mm Pitch 4-way Phoenix Combicon style
Output Connectors
8 x RCA (pair) Phono socket, line in (global in shared with Zone 8)
Input Connectors
8 x 2-position DIP switches (link to global input)1 x 3-position switch (power mode: on, auto detect, 12V trigger)8 x input gain control with Clip indicator LEDs

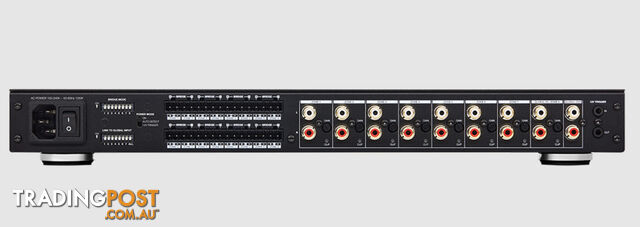

Rear panel
1 x Power LED (unit active – White, Fault – Red)8 x Zone status LEDs (Signal present – White, Fault – Red)
Front panel
typically 3V (recommended input is 5-15V)
12V trigger input threshold
15 minutes from last signal detected
Turn-off time
Wake-up time
2.5mV (independent of Gain setting)
Signal sense threshold
6.8V peak (4.8V rms sine wave)
Maximum input voltage
15KΩ
Input impedance
34.9dB to - infinity, adjustable
Voltage Gain
typically 0.05%
THD+N
>100dB A-Weighted
Signal to Noise ratio
20Hz-20kHz ±0.5dB
Frequency response accuracy
50kHz, any load impedance
Frequency Response
DC offset voltage
>400W short term;>200W continuous average
Output Power total, all channels
>50W into 8Ω; >100W into 4Ω
Output Power per channel
16 Channels
Number of Channels
Distribution Amplifier
Amplifier Type

Technical Specifications

With an array of user-friendly controls situated on the front and rear panels, you're given direct control of your amplified sound, ensuring seamless operation.
Direct Control

Built for the discerning audiophile, the CDA-16 boasts incredible precision with advanced channel management, impressive signal to noise ratio and outstanding frequency response, satisfying the highest audio standards.
Exemplary Precision

With the capacity to handle and enhance both stereo and mono outputs, the CDA-16 offers more scope to tailor your sound to your liking, all the while ensuring minimal room intrusion.
Advanced Configuration

With its streamlined design and compact size, this amplifier fits snugly in any room, making it an ideal choice for those keen on utilizing space without compromising on audio power.
Space Efficiency

Amplify any Bowers & Wilkins custom installation speaker to its highest potential with the CDA-16, pushing boundaries of performance and delivering exceptional audio quality.
Unmatchable Sound Quality

Giving you automation and control across up to eight rooms simultaneously, this amplifier offers an unprecedented scope for custom audio setups.
Custom Installation

The CDA-16 comes with easy-to-use control features including 1 power LED, 8 zone status LEDs, 8 x 2-position DIP switches and a 3 position power mode switch.
Easy to Control

50kHz, a signal to noise ratio of >100dB and total channel power exceeding 400W, this distribution amplifier showcases top performance in every sector.
