Technics SL-1000RE Reference Class Turntable - Silver

Technics SL-1000RE Reference Class Turntable

The SL-1000RE-S Reference Class Turntable system features a double coil coreless direct drive motor and heavyweight platter for stable rotation. Featuring a separate control unit and high-sensitivity base mounted tonearm on an extremely stable, rigid cabinet.
Coreless Direct Drive Motor

The motor that forms the heart of the direct drive turntable is based on the coreless direct drive motor that was developed for the SL-1200G launched in 2016, and further improved. The double coil twin rotor-type coreless direct drive motor that was newly developed for this purpose had coils on both sides for 12-pole, 18-coil drive, with high enough torque to drive the heavyweight-class platter (approximately 7.9-kg). Offsetting the coils on both sides 60 degrees improved the rigidity of the substrate, suppressing fine vibrations and reducing self-inductance. These improvements achieved stable rotation of 0.015% wow and flutter or less, which is considered to be the measurement limit.

Suppressing Unwanted Motor Vibration

The motor that was developed for the SL-1200G served as the platform for the direct drive motor. The double coil, reinforced thrust bearings, and a chassis with increased rigidity achieved a stabilised motor with low centre of gravity. By positioning two stainless steel weights with high rigidity and high specific gravity at the bottom of the chassis, the rigidity and low centre of gravity are maintained. These thorough measures to prevent unwanted vibration help to achieve overwhelming rotary precision and improve S/N.

Heavyweight-class Turntable Platter

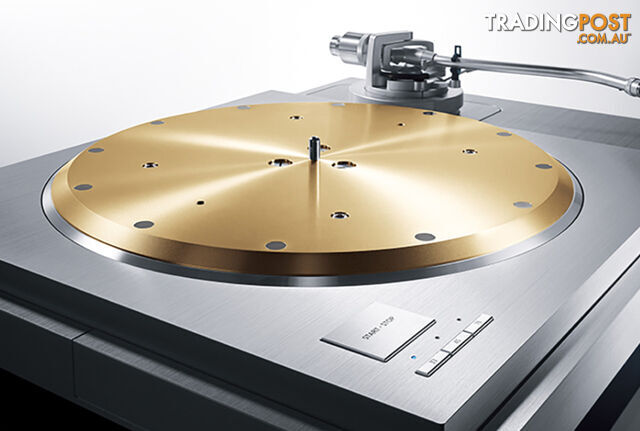

The turntable platter positions tungsten weights on the outer periphery of a 10-mm-thick brass weight. The brass weight is laminated onto the aluminium die-cast, giving the platter a total weight of approximately 7.9 kg and an inertial mass of approximately 1 toncm. A deadening rubber for eliminating unwanted vibration is also attached to the rear surface to form a 3-layer construction and achieve high rigidity and excellent vibration damping characteristics.

Separate Control Unit

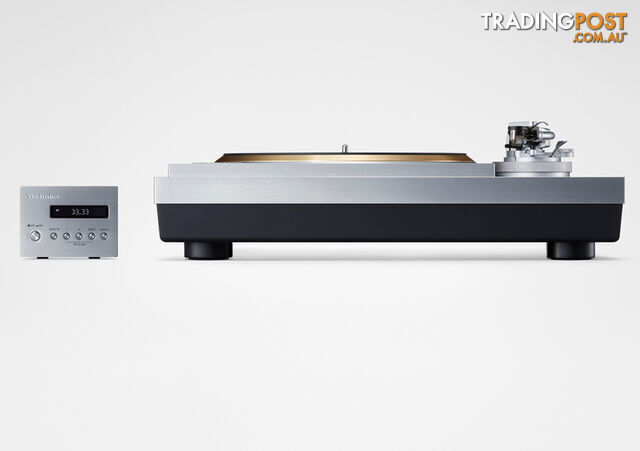

The control unit is separated from the main unit to suppress the effects of unwanted noise on the main unit. In order to achieve a power supply circuit that provides good regulation for high torque, a switching power supply is used. To reduce the noise reaching the pickup, the switching power supply is equipped with a unique technology that provides a voltage supply with minimal noise by a newly developed "unwanted noise reduction circuit". Also, to minimise the noise even during communication, a highly reliable system that resists the effects of external noise is used for communication between the main unit and the control unit. These thorough noise-reduction measures achieve the world's highest-level S/N.

Minute Adjustment and Indication of Rotations

This turntable supports not only LP (33 1/3 rpm) and EP (45 rpm) analogue records, but also SP (78 rpm). Rotation (rpm) can also be set down to two decimal places (maximum ±16%) from the control unit. The OLED display is also capable of displaying rotation with accuracy down to two decimal places, so the user can both hear and see extremely precise rotation.

High-sensitivity Tonearm

To enable the tonearm to precisely track the record's rotation, Technics has traditionally used the static balance, S-type universal tonearm with a lightweight, high damping magnesium tonearm pipe. The gimbal suspension construction tonearm uses high-precision bearings. Highly skilled Japanese craftsmen handle all assembly and adjustment to achieve a high initial-motion sensitivity to precisely trace the grooves cut into the records.

Tonearm Base

The tonearm base is strongly integrated with the turntable part. Comparing the turntable base part with the tonearm mounting construction, the relationship of the tonearm bearings, turntable bearings, and needle position is always constant, providing a structure in which the vibration caused by the rigidity of the turntable base materials has minimal effect, and the tonearm performance is maximised. An optional tonearm base can also be purchased, enabling, in addition to the standard tonearm, an existing short or long-type tonearm from SME or Ortofon to be mounted (up to three including the standard tonearm).

High-quality Terminal

A gold-plated 5-Pin DIN terminal is used, enabling the user to select the desired PHONO cable.

A Rigid Cabinet and High Damping Silicon Insulator

The cabinet has a 2-layer construction consisting of BMC (bulk molding compound) and a 30-mm-thick aluminium top panel. The turntable part is a 3-layer construction comprising BMC, aluminium die-cast, and a 25-mm-thick aluminium top panel. This gives the system a construction of 5 layers of different materials to ensure sufficient rigidity. The insulator that supports the cabinet is a special silicon rubber that combines high vibration damping characteristics and long-term reliability. Reinforcement with a cylindrical tube made of a microcell polymer absorbs vibrations in the horizontal direction. These parts are contained in a zinc die-cast housing with high specific gravity, for isolation from external vibrations.

Product Features
Coreless Direct Drive Motor
Suppressing Unwanted Motor Vibration
Heavyweight-class Turntable Platter
Separate Control Unit
High-sensitivity Tonearm
A Rigid Cabinet and High Damping Silicon Insulator
Technical Specifications
Turntable section

Drive Method
Direct Drive

Motor
Brushless DC motor

Turntable Speeds
33 1/3, 45, 78 rpm

Adjust Range
±16 %

Starting Torque
0.39 Nm / 4.0 kgcm

Wow And Flutter
0.015 % W.R.M.S.

Turntable Platter
Brass and aluminium diecast combined
Diameter : 323 mm
Weight : Approx. 7.9 kg (including turntable mat)

Tonearm Section

Type
Universal Static Balance

Effective Length
From the tonearm pivot to the stylus : 254mm
From the tonearm pivot to the spindle : 239mm

Overhang
15 mm

Tracking Error Angle
Within 1° 48' (at the outer groove of 30 cm (12") record)
Within 0° 30' (at the inner groove of 30 cm (12") record)

Offset Angle
21°

Arm Height Adjustment Range
0 - 15 mm

Stylus Pressure Adjustment Range
0 - 4 g (Direct Reading)

Applicable Cartridge Weight Range (including Headshell)
15.9 - 19.7 g (without auxiliary weight)
18.8 - 23.6 g (with small auxiliary weight)
22.5 - 26.3 g (with middle auxiliary weight)
26.0 - 31.0 g (with large auxiliary weight)

Terminals

Audio Output
PHONO (Din Jack) x 1 *Straight Type Cable Only

General

Power Supply
AC 110 - 240 V, 50 / 60 Hz

Power Consumption
10 W
Approx. 0.05 W (Standby)

Dimensions (W x H x D)
Main Unit 531 x 188 x 399 mm
Control Unit 110 x 84 x 350 mm

Weight
Main Unit Approx. 40.2 kg
Control Unit Approx. 2.1 kg

Operating Temperature Range
0° to +40°

Operating Humidity Range
35 % to 80 % RH (no condensation)

Whats in the Box
Turntable
Turntable mat
EP record adaptor
Balance weight
Auxiliary weight (Small)(Middle)(Large)
Overhang gauge
Screw set for turntable
Detachable handle
Hex wrench
Insulator attachment
Dust cover
AC main leads
Owner's manual
*This information has been obtained from Manufacturers website. We advise that Features & Specifications are subject change from Manufacturer without notice.

E&OE
