Cayin Jazz 100 Vacuum Tube Amplifier

Introducing the Jazz 100, Now also Available in Silver!

Unrivalled Sound Excellence and Timeless Engineering



Cayin Jazz 100 Tube Amplifier is a true audiophile’s masterpiece, engineered around the iconic 805A Power Tube to provide a truly exceptional listening experience.

Delivering an impressive 46 watts per channel in a pure Single Ended Class A configuration, the Jazz 100 excels in offering both clarity and warmth, delivering dynamic and rich sound that will captivate the most discerning ears.

Advanced Tube Design for Remarkable Sound Quality

At the heart of the Jazz 100 is an all-tube construction, which incorporates the  Mullard 6JC6 and 6SN7 voltage amplification tubes that have been paired with a 6L6 driver stage and the revered 805A output tubes.

This format design ensures a natural, warm sound that is perfect for both critical listening and long, enjoyable sessions. For those looking to fine-tune their sound, the 6L6 driver stage can be swapped out for a variety of other tube options, such as EL34, 6CA7, 5881, 6550, KT88, or KT90, giving you the ability to fully personalise your listening experience.

Versatile Connectivity for Modern Audio Systems

Cayin's Jazz 100 is built with versatility in mind and offers a range of inputs to accommodate both modern and traditional audio sources.

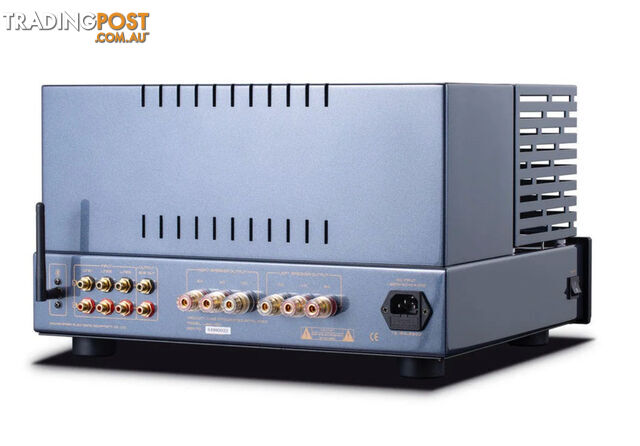

With three pairs of line inputs and a dedicated Bluetooth input conveniently located on the rear panel, it is easy to connect all your audio equipment. The amplifier supports 4 ohm and 8 ohm speakers, ensuring compatibility with a wide range of speakers for optimal performance.

Additionally, the customised output transformer provides a dedicated headphone output, allowing you to enjoy private listening sessions with high-quality sound.

Innovative Features for Precision and Control

This Amplifier also includes dual-function meters that not only act as professional power meters but also offer bias adjustment via a convenient meter switch on the top plate. This allows you to fine-tune the bias of the amplifier for the most precise sound reproduction.

Additionally, the top panel features user-adjustable bias controls and a hum balancer for the 805A tubes, ensuring minimal hum and perfect sound alignment. The negative feedback selection switch on the top plate lets you choose between high and low feedback settings, offering further flexibility in tailoring the sound to your personal preferences.

Built to Last with Premium Components

The Jazz 100 features a premium build, including anodised aluminum front and a fully vented chassis that ensures efficient cooling and adds to its stunning visual appeal. Meticulous hand-wired point-to-point construction not only provides excellent performance but also reflects an appreciation for fine craftsmanship.

Premium components such as an Alps volume control, porcelain tube sockets, audio-grade capacitors, carbon film resistors and a toroid power transformer ensure that this amp performs at the highest level, with stunning detail and depth across all types of music.

Enhanced Protection and Longevity

To ensure the long life of your amplifier, the Jazz 100 comes equipped with high voltage fuses that provide important protection in the event of tube failure. This makes it easy to troubleshoot and maintain the amplifier for years of exceptional performance.

The inclusion of a soft-start circuit and high voltage delay protects the amplifier’s tubes, reducing wear and tear and promoting longevity, ensuring that your Jazz 100 will continue to deliver a superb listening experience for many years to come.

Aesthetic Excellence and User-Friendly Convenience

With its stylish black front finish and sophisticated design, the Jazz 100 looks as good as it sounds. The amplifier features remote control functionality, allowing you to adjust settings from the comfort of your seat. It even remembers your last operation settings when powered off, making it incredibly convenient and easy to use.

Technical Specifications

Power Output
46W + 46W

Frequency Response
12Hz-33kHz

THD
0.2%(1W/1kHz)

S/N Ratio
90dB (A Weighted)

Input Sensitivity
320mV

Input Impedance
100kΩ

Output Impedance
4Ω, 8Ω

Power Consumption
410W (max)

Tubes
6JC6 × 2
6SN7 × 1
6L6 × 2
805A × 2

Headphone Output Impedance
16Ω~300Ω

Input Connector
LINE1, LINE2, LINE3, Bluetooth

Bluetooth Version
V5.0

Bluetooth Chip
QCC5125

High Fidelity DAC Chipset
ES9018K2M SABRE32

Audio Format
UAT, LDAC,apt-X,apt-X HD,apt-X Low latency, SBC, AAC

Effective Range
≤10M

Dimensions (W × D × H)
420 ×3 89 ×248  mm

Weight
35 kgs

Warranty
2 years (3 months for tubes)
