Rotel A12MKII Integrated Amplifier

We'd like to introduce the remarkable A12MKII

Integrated Amplifier from Rotel

The A12MKII Integrated Amplifier stands well above its slim, sleek design profile designed and engineered for music lovers. Powered by Rotel’s oversized in-house manufactured toroidal transformer the A12MKII delivers 60 Watts of clean, dynamic Class AB output power into 8 ohms.

A Moving Magnet Phono Stage, 4 RCA analog, 4 digital, PC-USB and high quality wireless aptXTM Bluetooth input ensures connection to your favourite sources, while the premium 32-bit Texas Instruments DAC extracts genuine and accurate details of the music with optimised circuits preserving the integrity of the audio stream.

Slim and powerful the A12MKII delivers on Rotel’s iconic brand heritage.

Product Features
Fully Featured Integrated Amplifier, High Current Power Supply, Great Sound
60 Watts per Channel, Bass & Treble Controls, A & B Speaker Outputs
MM Phono Input For Turntables plus Four Line Level Inputs & Preamp/Subwoofer Outputs
Premium Texas Instruments DAC with Coaxial, Optical, USB-A, USB-B & Bluetooth aptX
Technical Specifications

Design
60 Watt Stereo Integrated Amplifier

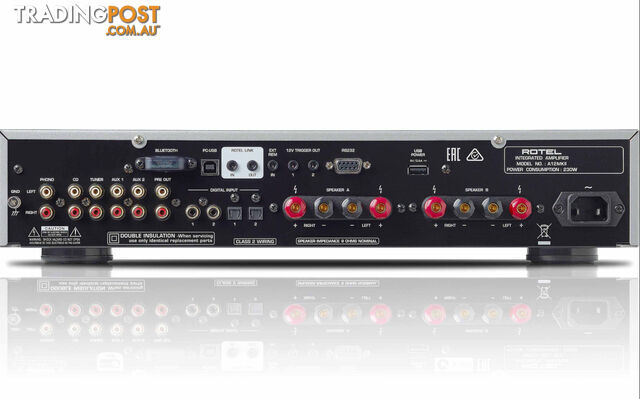

Connections

Audio Inputs
MM Phono, CD, Tuner, Aux 1, Aux 2, Coaxial digital x 2, Optical digital x 2, USB-B for computer audio, Bluetooth aptX dongle for audio streaming, front panel USB-A compatible with Apple iOS products

Audio Outputs
A & B Speakers, Headphone, Preamp/Subwoofer

General Inputs/Outputs
Rotel Link (for controlling other Rotel products), External Remote, 12V Trigger In/Out, RS232

Continuous Power Output
60 Watts per channel (20 - 20kHz,

Total Harmonic Distortion
Intermodulation Distortion
Frequency Response

Phono Input
20Hz - 20kHz, ± 0.5dB

Line Level Inputs
10Hz - 100kHz, ± 0.5dB

Damping Factor
220 (20 - 20,000 Hz, 8 ohms)

Input Sensitivity / Impedance

Phono Input
3.4 mV / 47k Ohms

Line Level Inputs
230 mV / 24k Ohms

Input Overload

Phono Input
50 mV

Line Level Inputs
4 V

Preamp Output / Impedance
1.2 V / 470 Ohms

Tone Controls - Bass / Treble
± 10 dB at 100Hz / 10kHz

Signal to Noise Ratio (IHF “A” weighting)

Phono Input
90 dB

Line Level Inputs
100 dB

Digital Section

Frequency Response
10Hz - 90kHz (± 2.0dB, max)

Signal to Noise Ratio
103 dB (IHF ”A” weighted)

Input Sensitivity/Impedance
0 dBfs / 75 Ohms

Preamplifier Output Level
1.4 V (at - 20dB)

Coaxial/ Optical Inputs
SPDIF LPCM (up to 24bit / 192kHz)

PC USB-B Input
USB Audio Class 1.0 (up to 24bit / 96kHz)
USB Audio Class 2.0 (up to 32bit / 384kHz - Driver installation required)
Certified Roon Tested

General

Power Consumption
230 watts

Standby Power Consumption
Finishes
Black or Silver

Dimensions (W x H x D)
430 x 93 x 345mm

Weight
8.76 kg

Manufacturer’s Warranty
2 Years



*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change without notice.

E&OE
