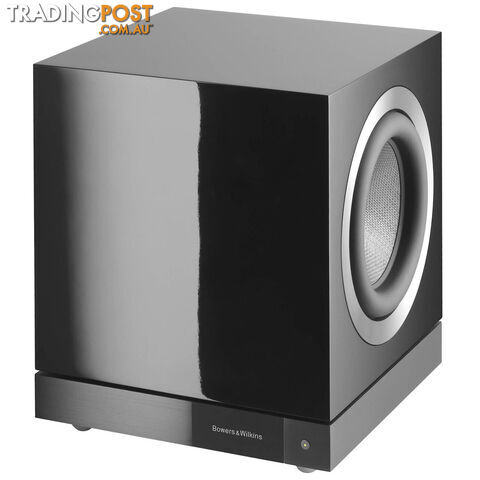

B&W DB3D 1000w Active Subwoofer in Black

Meet the DB3D 1000w Active Subwoofer

Proudly brought to you by Bowers & Wilkins

The B&W DB3D delivers astonishing performance from a compact subwoofer. Its dual balanced 8-inch Aerofoil drivers are effortlessly powered by a 1000 Watt Class D amplifier to deliver punchy, deep bass.

About B&W DB3D Subwoofer

The Bowers & Wilkins DB Series is their most advanced range of subwoofers yet. Following in the footsteps of the ground-breaking DB1, each model in the three-strong range incorporates new digital technology plus a host of material advances from the award-winning 800 Series Diamond loudspeakers. All three subwoofers have huge power, Aerofoil cone drive units and an all-new preamplifier section with dynamic EQ and simple yet highly effective automatic calibration. An intuitive control app makes them simple to configure and use, whether they are being used in a cinema system, a home installation or to complement stereo loudspeakers. Quite simply, the new DB Series is the best-sounding subwoofer range in its class.

Space Saver: When you demand faultless base but floor space is at a premium, there is the DB3D. This high performance subwoofer is capable of delivering space defying bottom end from a compact, incredibly rigid cabinet.

Aerofoil For Precision Bass: The DB3D uses Aerofoil cones identical to those found in the flagship 802 D3. These two 8 inch cones are light and ultra stiff, and can resist bending and flexing far longer than conventional cones, delivering controlled bass with outstanding precision.

Balanced Drivers: The DB3D subwoofer uses two bass cones arranged in an opposed, balanced configuration that greatly reduces cabinet vibration and insures a cleaner, more precise sound. The result: fantastic, colouration-free bass.

Digital: Thanks to an all-new digital preamplifier, the BD3D subwoofers awesome power is always delivered at optimum levels. Bespoke features such as Dynamic EQ and Room EQ insure precision performance in every circumstance such as home cinema, custom installation or two channel Hi-Fi.

Dedicated App: App based set-up means the DB3D is simple to configure and use. The app includes positioning guides and can be used to set up and control both output and audio preset modes. A Room EQ system allows you to optimise the subwoofers performance for your room automatically. No separate microphone kit is required and the app is available for iOS and Android.

Perfect Partner: The DB3D is the obvious partner for a system built using the award-winning 800 Series Diamond. It has been engineered with this in mind and uses the same Aerofoil bass drivers. However, this incredibly capable subwoofer also works exceptionally well with a 700 series system, and provides a fantastic option for owners of this high-performance range.

In The News

In leading recording studios, music that will soon be heard everywhere is heard first through Bowers & Wilkins speakers. Bowers & Wilkins speakers are the only speakers I have found that enable me to accurately listen to how the original performance has been recorded.

Peter Cobbin, producer and sound engineer. Recent feature film work includes Rogue One: A Star Wars Story, Doctor Strange and Alien: Covenant.

Main Features & Specifications
Description: DB Series Subwoofer
Drive units: 2 x 200mm (8in) Aerofoil-cone drive units in a balanced configuration
Frequency range (-6dB): 8.5Hz - 500Hz
Frequency Response -3dB (centred on level at 100Hz): 10Hz - 350Hz
Max power output: 1000W Class D Hypex amplifier
Rating power consumption: 195W
Standby power consumption:
Input impedance: XLR 20kOhm, RCA 10kOhm
Signal to noise ratio: 82db
Features: 1000W Class D Hypex amplifier
, 2 x 200mm (8in) Aerofoil-cone drive units in a balanced configuration, Digital preamplifier with Dynamic EQ, App-based set-up and BT-LE control
Inputs: 2 x XLR
, 2 x RCA
, 2 x 3.5mm 12V trigger, RS-232 – 9-pin D connector
Dimensions (WxHxD): 320 x 360 x 300 mm
Net Weight: 25kg
Cabinet Finishes Available: Gloss Black (with black grilles) & Satin White (with grey grilles)
Manufacturer's Warranty: 3 Years
