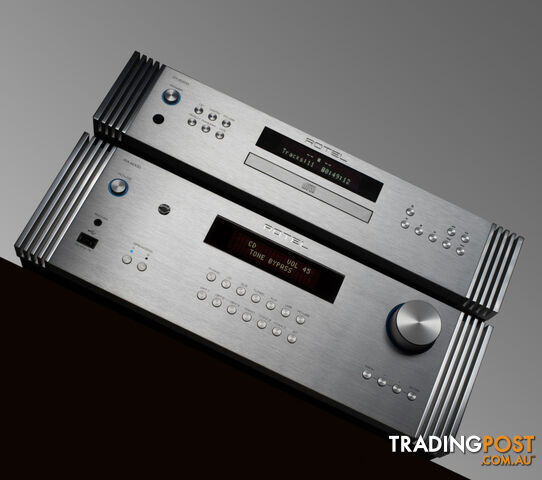

Rotel Diamond Series RA-6000 Integrated Amplifier

Diamond Series RA-6000

Stunning Integrated Amplifier from Rotel

The Rotel DT-6000 DAC Transport boasts six decades of Rotel's excellence in delivering top-notch performance, passion, and value, characteristics inseparable from the brand's Japanese roots. With Coaxial, Optical, and PC-USB inputs, as well as an integrated CD Player, the DT-6000 offers unparalleled flexibility for playing your preferred sources, delivering dynamic precision and authentic accuracy in digital audio.
The DT-6000’s critical Digital to Analog circuits utilises an ESS Sabre 8-Channel ES9028PRO DAC dedicating 4 channels each to the Left and Right stereo outputs. The DACs multi-channel processing delivers unprecedented details with an ultra-low noise floor through fully differential circuits resulting in an immersive, expansive sound stage.

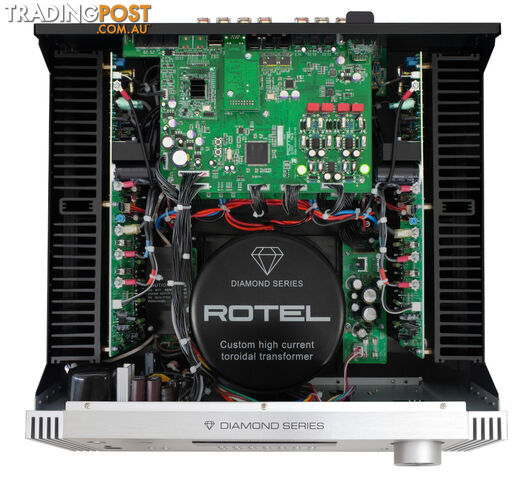

This product features dedicated power supplies that provide constant power to all critical circuits. These circuits are powered by our in-house manufactured low-emission shielded toroidal transformer, which utilises high efficiency, low ESR slit-foil smoothing capacitors to deliver ripple-free current. The physical circuit board isolation techniques and electronic decoupling design methods used result in reduced residual noise and distortion in the sensitive analog stages, including the external DAC output filters.
The Coaxial and Optical inputs support PCM audio up to 24-bit/192kHz with the asynchronous PC-USB input rendering up to 32-bit/384kHz high resolution music files. The PC-USB also supports MQA and DSD 4X and is certified Roon Tested for the highest compatibility with Roon software.

The smooth action tray loading CD player utilises Rotel’s formidable 30 years of experience engineering and manufacturing award winning disc spinners. The industrial design includes a spring-floating CD mechanism with damping materials to reduce mechanical noise and vibrations during playback. Precision motor controls and the optical laser pick-up extract every nuance and detail from CD collections both large and small.

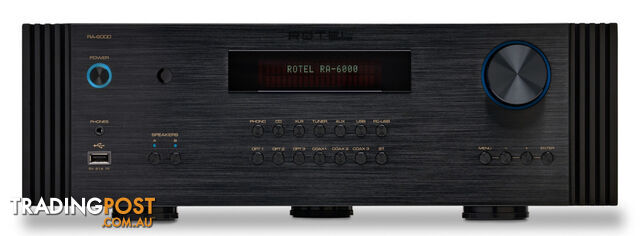

Front panel controls and a back-lit IR remote provide intuitive operation of the unit with playback status, music file stream details and CD metadata shown on the two-line display.

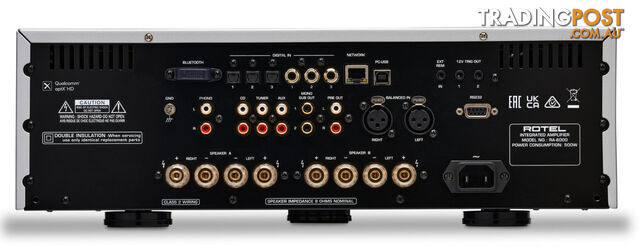

The RS232, 12V trigger and external remote input ensure simplified integration with all popular control systems. The DT-6000 is available in black and silver.

Technical Specifications

Amplification
Amplifier Class AB
Power 350 Watts

Analogue Inputs
3.5 mm None
Phono 1
RCA 4
XLR 1

Analogue Outputs
Headphones 1
Pre 1
Sub 2
Tape None

DAC
Resolution 32-bit/384kHz
Type Texas Instruments

Digital Inputs
Coaxial 3
Optical 3
PC-USB 1
