ProJect Amp Box S3 Power Amplifier

Amp Box S3 Power Amplifier
Micro audiophile stereo power amplifier.  Efficient, audiophile & made in Europe!

The new Amp Box S3 offers one stereo RCA input and delivers powerful and room-filling sound to every loudspeaker. A new PCB concept & sophisticated topology achieves less distortion and a better signal to noise ratio.

ProJect designed this amp to match the sound characteristics of a tube amplifier as closely as possible. Amp Box S3 brings you a rich and musical sound with an analogue touch of warmth into your living room. It is also the perfect solution for your desktop nearfield monitor speakers due to its size and superior spacious sound stage.

Applications
HiFi Amplifier for 10-15 m2 rooms
Audiophile desktop nearfield monitor amp
Streamer power amp upgrade
Multi room power amp solution
Home cinema power amp upgrade
In-wall or ceiling speaker amp

The new Amp Box S3 is designed and produced in Europe and is available in a silver finish.

Features

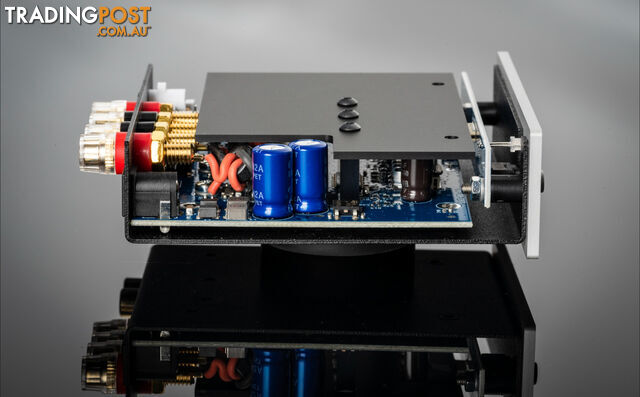

NEW PCB concept & sophisticated topology
NEW lower distortion & better SNR
Ultra compact & audiophile
Advanced amplifier module
Metal casing protects against vibration and interference
Made in Europe

Technical Specifications

Power output 2 x 23 W / 40 W at 8 ohms / 4 ohms
Peak power 2 x 50 W at 4 ohms
Frequency response 20Hz - 20kHz (- 0,7dB / 4 ohms)
Channel separation > -68 dB @ 20kHz
Signal-to-noise ratio 87dBV (100dBV-‚A‘ weighted)/4ohms
THD
Gain 31 dB

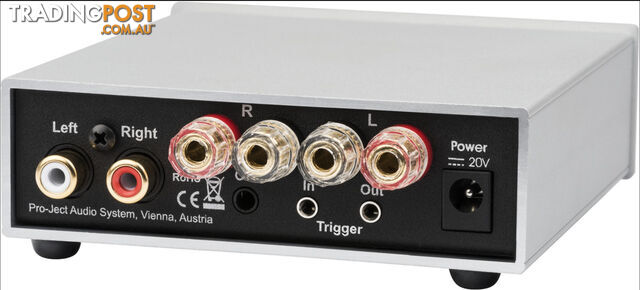

Input 1 pair RCA sockets
Input impedance 25 kohm
Speaker sockets 4mm Ø Banana, spades. pins or bare wire
Trigger 12V DC In&Out, 2-pole jack socket Ø 2,5mm
Power supply 20V/3A DC (universal power supply)
Dimensions W x H x D 103 x 36 x 118mm
Weight 385g not including power supply
