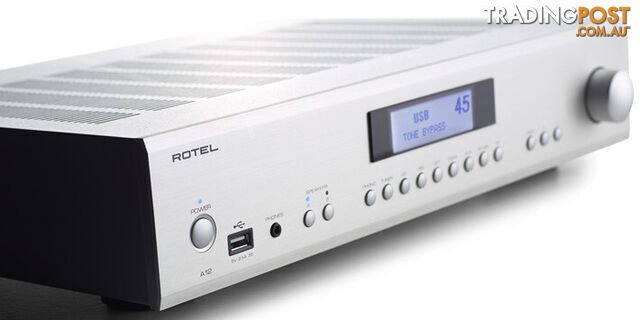

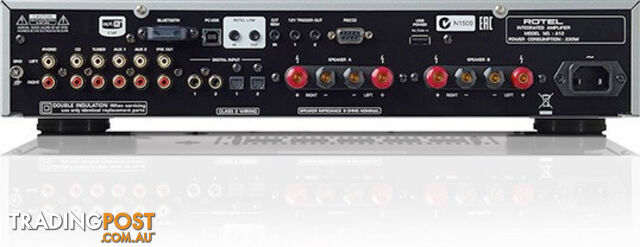

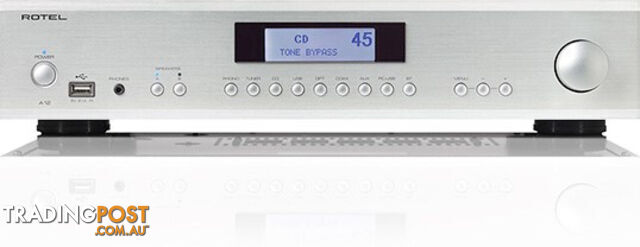

Rotel A12 Integrated Amplifier

Rotel’s A12 integrated amplifier offers impressive audio performance as well, but with slightly less output at 60-watts per channel. Input connections include both analogue and digital, along with aptX Bluetooth streaming capability.

Product Description

The A12 integrated amplifier displays the same clean lines and intuitive operation as the A14 with output power rated at 60 watts per channel RMS into 8 ohms. Rotel engineers begin their quest for uncompromising audio performance at the power supply. This is the heart of an amplifier and an area where considerable time and investment is spent. Rotel manufactures its own toroidal transformers in-house to high tolerances using raw materials selected from proven, trusted suppliers. The result is a rugged power supply that won’t easily distort the music under dynamic conditions or with dií«_fficult speaker loads.

C-Net in their review said of the Rotel A12 ....."The A12 is the sort of amp you can build a first rate audiophile system around,and not break the bank."

 2 x 60 Watts of robust. Class AB power

 iOS / Android control App (requires connection to T14)

  Moving magnet phono input for turntable connection

 Bluetooth with aptX

 Wolfson premium 24-bit/192kHz Digital to Analog Converter



Specifications
INTERMODULATION DISTORTION (60Hz:7kHz, 4:1)


DAMPING FACTOR
220

SPEAKER IMPEDANCE
4Ω minimum

INPUT SENSITIVITY
Line Level Inputs: 200mV
Digital Inputs: 0dBfs
Phono Input (MM): 3mV

INPUT IMPEDANCE
Line Level Inputs: 24kΩ
Digital Inputs: 75Ω
Phono Input (MM): 47kΩ

INPUT OVERLOAD
Line Level Inputs: 4V
Phono Input: 50mV

PREOUT LEVEL
1V

OUTPUT IMPEDANCE
470Ω

TONE CONTROLS
±10dB at 100Hz / 10kHz

COAX/OPTICAL DIGITAL INPUT SIGNALS
LPCM (Up to 24-bit/192kHz)

PC-USB
USB Audio Class 1 (up to 24/96)
USB Audio Class 2 (up to 24/192)
More Specifications
DIMENSIONS (W × H × D)
430 × 93 × 345mm
17" × 3.6" × 13.5"

FRONT PANEL HEIGHT
80mm (3.15")

POWER REQUIREMENTS
230V, 50Hz

POWER CONSUMPTION
230W

STANDBY POWER CONSUMPTION


NET WEIGHT
8kg (17.6lbs.)

BTU RATING (4Ω, 1/8th power)
517 BTU/h

CONTINUOUS POWER OUTPUT
60W/Ch (All channels driven, 8Ω)

TOTAL HARMONIC DISTORTION (THD)
(20Hz–20kHz)

FREQUENCY RESPONSE
Line Level Inputs: 10Hz - 100kHz ±0.5dB
Digital Inputs: 10Hz - 80kHz ±3dB
Phono Input: 20Hz - 15kHz ±0.5dB

S/N RATIO (IHF "A" Weighted)
Line Level Inputs: 100dB
Digital Inputs: 103dB
Phono Input: 90dB
