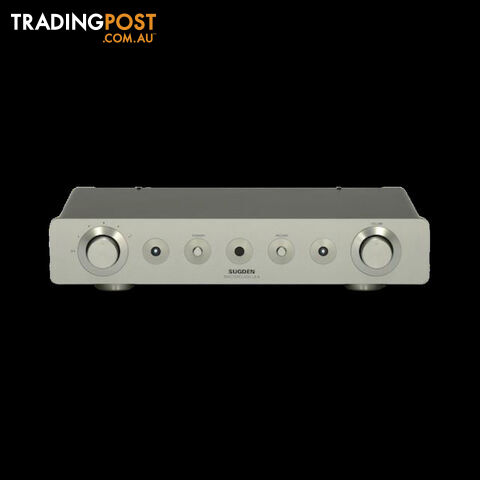

Sugden Masterclass LA-4 Line Pre-Amplifier

Introducing the Masterclass LA-4



Remote Volume Class A Line Pre-Amplifier

The Sugden Masterclass LA-4 Class A Line Pre-Amplifier is a line level stereo pre-amplifier with authority, finesse and the capability to develop a sound stage with imaging, dimensional realism, and time/space elements in perfect harmony. The pre-amplifier's primary function is to deliver more music with neutrality to allow end users to choose mating components and obtain customised performance.

The LA-4 was developed to complement the Sugden Masterclass Power Amplifiers and at its heart has dual mono, DC-coupled, Class A, current feed back gain stages. The electronic circuitry of the LA-4 has been developed to offer the best possible sonic performance without compromise including the use of specially selected transistors and capacitors to provide the best signal preservation. Attention to detail such as gold plated circuit boards, high grade silver signal wiring, silver soldered components and precision gold plated relay switching. The gain stages are each powered by current shunt differential power supplies, which enable the fastest transients and most powerful crescendos with true musical empathy.

Every LA-4 is individually hand made by a single highly skilled technician, each sub assembly undergoes testing prior to final assembly, receives a 'burn-in' and final specification check before packing and is your guarantee of a product of the highest quality.

The LA-4 has provision for stereo pairs of balanced inputs (XLR), four single ended Phono/RCA inputs, a By-Pass input, Input and output recording facility, two main pre-amplifier outputs and a balanced output (XLR).

Product Features & Specifications

Inputs
Four line level inputs
one tape inputs
one balanced input and bypass input

Outputs
Two line level outputs
fixed tape output and balanced output

Volume Control
Motorised remote control RC5 compatible

Recording
Tape output defeat

Input Sensitivity
100mV for 1 Volt out

Maximum Output
10 Volts

Frequency Response
15Hz to 30kHz +/- 0.1dB

Bandwidth
6Hz to 300kHz +/- 3dB

Signal to Noise Ratio
>90dB

Net Weight
7kg

Dimensions, including terminals (H x W x D)
750 x 430 x 350 mm



*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change without notice.

E&OE
