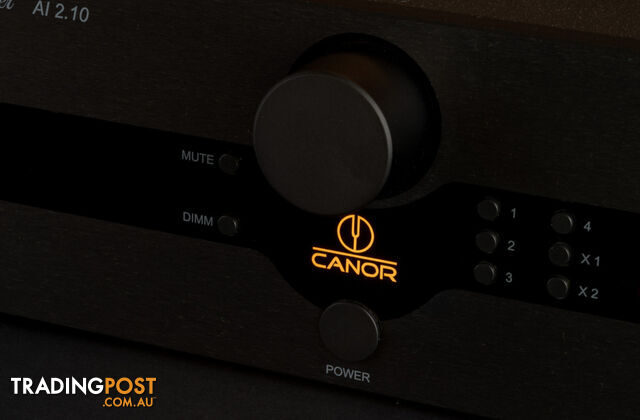

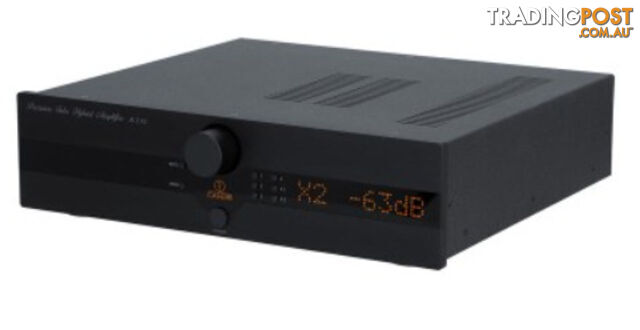

Canor AI 2.10 Hybrid Integrated Amplifier

Introducing the A 2.10

The Performance Line Integrated Tube Amplifier from Canor



CANOR AI 2.10 is a hybrid integrated amplifier with an output power of 2 x 150 W / 4 Ω.

Highlights
A hybrid integrated amp powered by a filtered and tuned linear power supply
The input transformer (toroid) is oversized which leads to the low noise
XLR inputs with a strictly symmetrical signal up to the power amplifier part (the whole path is symmetrical)
Linear Power Supply

A power amplifier in class D is powered by a filtered and tuned linear power supply. There are also benefits of using the additional LC filters, with very low impedance, for the greatest possible suppression of the carrier frequency D class of the amplifier.

Tube Preamplifier with Relay Attenuator

The tube preamplifier on the input is fitted with a precise relay attenuator.

Input Transformer

The input transformer (toroid) is oversized which leads to the low noise.


Product Features
Hybrid integrated amplifier with an output power of 2 x 150 W / 4 Ω
The preamplifier part of AI 2.10 consists of a pair of precisely selected tubes 6922
Tube preamplifier on the input fitted with a precise relay attenuator
Power amplifier in class D, powered by a filtered and tuned linear power supply
PCB’s utilise our premium CMT ™ technology
XLR inputs with a strictly symmetrical signal up to the power amplifier
Technical Specifications

Stereo Output Power
2 x 40 W / 4, 8 Ω – ultra-linear
2 x 20 W / 4, 8 Ω – triode)

Monoblock Output Power
1 x 80 W / 8 Ω – ultra-linear
1 x 40 W / 8 Ω – triode

Gain
30 dB (at 8 Ω)
28 dB (at 4 Ω)

Inputs Sensitivity
500 mV

Frequency Range
10 – 50.000 Hz ± 0.5 dB / 5 W

Output Power
2 x 150 W / 4 Ω

Input Sensitivity
400 mV / 150 W / 1 kHz

Frequency Range
(20 – 20 000) Hz ±0,53dB / 5 W

Input Impedance
30 kΩ

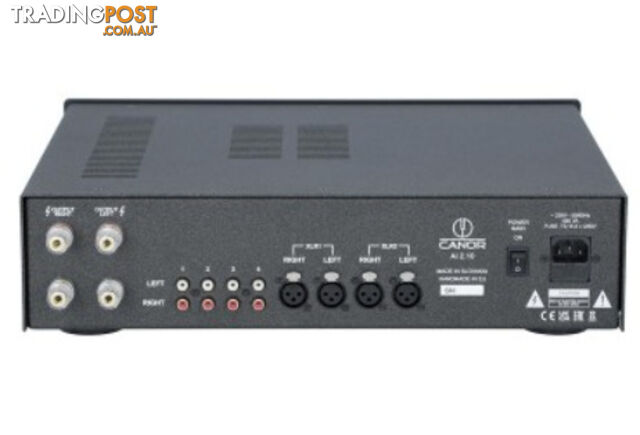

Inputs
4 x RCA
2 x XLR

Total Harmonic Distortion
Signal-to-noise ratio
> 95 dB

Tube Complement
2 x 6922

Power
230 V / 50 Hz / 450 VA

Dimensions (w x h x d)
435 x 120 x 405 mm

Weight (net)
17 Kg



*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change from Manufacturer without notice.

E&OE
