Marantz AV 10 Reference 15.4 Channel Home Theatre Pre-Amplifier/Processor

Meet the Marantz AV 10

Reference 15.4 Channel Home Theatre Pre-Amplifier/Processor

AV 10 is an advanced 15.4 Channel Balanced Processor offering Dolby Atmos, DTS:X Pro Auro 3D, IMAX Enhanced and 8K Ultra HD, with HEOS® Built-in streaming added for superior performance. This flagship AV Processor is designed for uncompromising sound quality.
Achieve the Best Sound Possible

Dirac Live is an advanced audio calibration system designed to improve the sound quality of AV 10. It leverages decades of engineering heritage, and is backed by timeless styling, enabling users to enjoy the highest levels of performance in their home theatre. Marantz CINEMA Series provide the essential foundation to bring home entertainment to life.

Excellence Only Begins with Performance

Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world's most demanding home theatres.

Key Features
Peerless Performance

Built upon decades of rich heritage, designed with timeless style, and engineered for utmost performance, Marantz CINEMA Series are the foundation of the world's most demanding home theatres.

Technology Leader

AV 10 comes packed with the latest immersive audio formats, 8K video, room optimisation, streaming, and more technology to simplify and elevate your enjoyment.

Exquisite Design

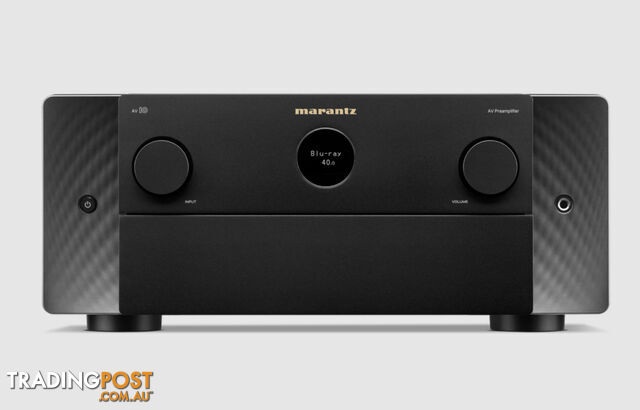

A modern expression of timeless design principles, AV 10 features the iconic Marantz porthole, premium materials, and subtle sidelights that illuminate the front panel.

Believe in Quality Performance
The Marantz Sound Master meticulously tuned AV 10 for amazing performance with careful parts selection to create the Most Musical Sound in your home.
Style

Excellence is heard and seen. AV 10 is meticulously crafted with authentic materials in a modern style befitting its rich heritage and stunning performance

Customisability

Thoughtfully curated connectivity options and fine tuning ability allow you to make AV 10 your own

Effortless

Included aluminium remote, accessible front-panel controls, and an intuitive onscreen setup process make you feel like an expert user right away.

Technical Specifications
Multichannel Surround
DTS HD Master / DTS:X / DTS:X Pro
Yes / Yes / Yes

DTS Neo:X / DTS Neural:X
No / Yes (15ch)

DTS Virtual:X
Yes

IMAX Enhanced
Yes

Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualisation / Dolby Atmos Music
Yes / Yes / Yes / Yes

Dolby ProLogic Ilz / Dolby Surround
No / Yes

Auro 3D
Yes

360 Reality Audio / MPEG H
Yes / Yes

Multichannel Stereo
Yes

Max Number of Processing (Preamp) Channels
15.4

Sound Enhancements

Copper Plated Chassis
Yes

Power Transformer: Toroidal / EI
Yes / No

Current Feedback Topology
Yes

Hyper Dynamic Amplifier Modules (HDAM)
Yes

Pure Direct
Yes

Gold plated RCA terminals
Yes

Clock Jitter Reducer
Yes

Audyssey
MultEQ XT32

Audyssey Dynamic EQ / Dynamic Volume
Yes / Yes

Audyssey LFC
Yes

Dirac Live upgradability
Yes

Compressed Audio Enhancer: MDAX2
Yes

Network

HEOS Multi-room and Streaming
Yes

Bluetooth Re-transmit for Bluetooth headphones
Yes

Alexa / Google Voice Assistant / Apple HomePod
Yes / Yes / Yes

Network Audio Sharing
Yes

Lossy formats: MP3 / WMA / AAC
Yes / Yes / Yes

Lossless formats: FLAC / ALAC / WAV
Yes / Yes / Yes

Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24
Yes / Yes / Yes

DSD Audio Streaming
Yes (2.8/5.6MHz)

FLAC HD 192/24
Yes

WAV 192/24
Yes

ALAC 192/24
Yes

Gapless Playback
Yes (FLAC, WAV ,ALAC ,DSD)

AirPlay Audio Streaming
Yes (AirPlay2)

Internet radio
Yes (TuneIn)

Spotify*
Yes (connect)

Pandora
Yes

SiriusXM
Yes

Other Streaming Services *
Amazon Music HD
Amazon Music
TIDAL
Deezer
iHeart Radio
Napster
Soundcloud
Mood Mix

Roon Tested
Yes

Compatible with Remote APP for Smart Phones
Marantz 2016 AVR Remote

Compatible with Remote APP for Tablets
Android / iOS / Amazon Kindle

Ethernet Ports
Yes

Wi-Fi
Yes

Bluetooth
Yes

HDMI

HDMI Inputs: Back / Front
7 / No

HDCP2.3 support
Yes

HDMI Outputs: Main / Zone
2 / 1

HDMI to HDMI Scaling
1080P/4K to 8K

GUI Overlay on HDMI
Yes

HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB
Yes / Yes

8K/60Hz AB / 4K/120Hz AB Pass-through In/Out
7 / 2 (up to 40Gbps)

HDMI 2.0: 3D / 4K / CEC / ARC
Yes / Yes / Yes / Yes / No

Enhanced ARC
Yes

HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
Yes / Yes / Yes / Yes / Yes

ALLM (Auto Low Latency Mode) Pass-through for gaming
Yes

Variable Refresh Rate / Quick Flame Transport / Quick Media Switching
Yes / Yes / No

3D Signal Pass-Through
Yes

8K signal pass-through / scaling / GUI overlay
Yes / Yes / Yes

4K Signal Pass-Through / Scaling / GUI Overlay
Yes / Yes / Yes

HDMI pass-though in standby mode
Yes

Picture Adjust / Noise Reduction
No / No

CEC
Yes

DSD Audio Capability
Yes

Audio Return Channel
Yes

Auto LipSync
Yes

Multi-Room / CI

HEOS Multi-Room Integrated
Yes

HEOS Link Compatibility: IR/ IP
Yes / Yes

Multi-Room Zones
3

Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog
Yes (2ch) / Yes (2ch) / Yes / Yes

Zone Audio Output: Speaker / Preout
No / Yes

Zone HDMI Output from HDMI Source
Yes

IP Control / RS232 Control / Web Control / App Control
Yes / Yes / Yes / Yes

IR Flasher In
Yes

Marantz Remote Bus
Yes

DC Trigger Output
2

HDMI Diagnostics
Yes

Others

Auto Speaker Setup by Microphone
Audyssey MultEQ XT32
Dirac Live (upgrade)

Front Display
2 line FLD + port hole OLED

Graphic User Interface - GUI
Modern HD GUI

GUI Languages
3

Setup Assistant
Yes

Smart Select
Yes

Firmware Update by Network / USB
Yes / Yes

Variable Cross Over
Yes

Optimised Bass Redirection
Yes

Bass Sync
Yes

Auto Power off
Yes

Sleep Timer
Yes

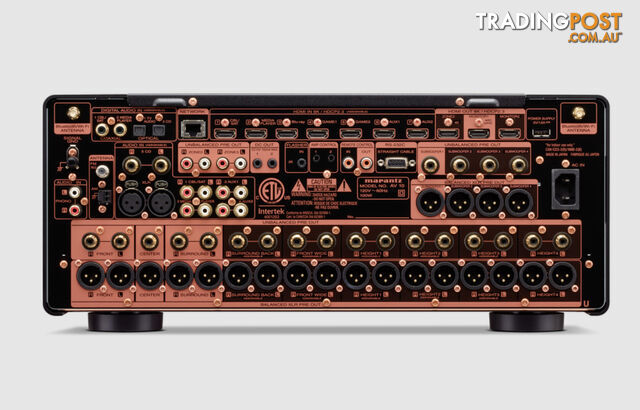

Inputs/Outputs

Composite In / Out
No / No

Component In / Out
No / No

HDMI In / Out
7 / 3

Multi-Room Video Out: Video / HDMI
No / Yes

Analogue In / Out
5 (1x XLR) / No

Phono (MM) In
Yes

Digital In: Optical / Coaxial
2 / 2

Multi-Room Out: analog / digital
2 / No

Multichannel Pre Out
Yes (17.4 RCA & 17.4 XLR)

Subwoofer Out
4 (independent)

Speaker A / B
assignable pre out

Bi-amp drive
assignable pre out

Multi-Room Speaker Terminal
pre out

Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB
No / No / No / No / Yes

USB Audio / Made for iPod / Made for iPhone
Yes / No / No

AM/FM Tuner
No

General

Metal Front Panel
Yes

System Remote Control
RC047SR

Pre-Programmed / Learnable / LCD Display
Yes / Yes / Yes

Power Consumption in W
100

Standby Consumption in W
0.2

CEC Standby Consumption in W
0.5

Network Standby Consumption in W
Less than 2.0

Maximum Dimensions (W x D x H)
Antenna - Horizontal: 44.2 x 50.3 x 18.8 cm
Antenna - Vertical : 44.3 x 50.3 x 25.15 cm
W/o Antenna: 44.2 x 48.26 x 18.8 cm

In the box
Main unit
remote control
batteries
AM/FM antennas
wire labels
quick start guide
Audyssey microphone
card board microphone stand
2 External Detachable Antenna
AC cord
