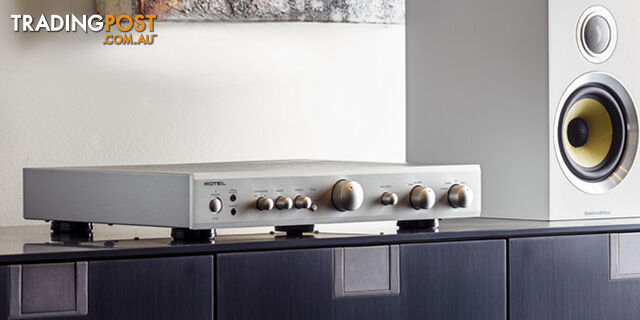

Rotel A10 Integrated Amplifier in Silver

Meet the A10 Integrated Amplifier

Simply put the Rotel A10 is Awesome

The Rotel A10 is based on the classic Rotel Class AB analog integrated amplifier, designed for music lovers everywhere.

The architecture of the Rotel A10 is a perfect match for turntables, with an MM phono input being available on all Rotel amplifier models. This efficiently designed amplifier is all about performance – processing audio entirely in the analog domain to provide hours of listening enjoyment.

Rotel is a family owned business founded in Japan over 50 years ago. They pride themselves in the fact that they make many of the parts in their amplifiers in-house. For example Rotel make their own toroidal transformers which are the heart of any amplifier and provide the means to their amplifiers delivering dynamic music reproduction.

If you are considering taking your first step into a true hi-fi system or are seeking a small, high quality audio system for another living space, you can’t do better than the A10 integrated amplifier. The A10 is all about maximum performance for the price. Its design strips away added features that increase the overall cost and can detract from your musical enjoyment.

Simple to operate and a pleasure to listen to, the A10 has connectivity for all your listening sources including an analogue media input (3.5mm mini-jack) for iOS devices or other media players, a CD input, a high quality MM phono input to cater for those wishing to enjoy the atmospheric sound of vinyl, a Tuner input to listen to your favourite radio stations and two auxiliary inputs for other analogue source devices.

Product Features
2 × 40 Watts of robust power
Class AB amplifier design
High current power supply
Moving magnet phono input for turntable connection
Technical Specifications
AMPLIFIER CLASS
AB

CONTINUOUS POWER OUTPUT
40W/Ch (All channels driven, 8Ω)

TOTAL HARMONIC DISTORTION (THD)
(20Hz–20kHz)

FREQUENCY RESPONSE
Line Level Inputs: 10Hz - 40kHz ±1dB
Phono Input: 20Hz - 15kHz ±0.3dB

S/N RATIO (IHF "A" Weighted)
Line Level Inputs: 100dB
Phono Input: 80dB


DIMENSIONS (W × H × D)
430 × 72 × 342mm
17" × 2.9" × 13.5"

FRONT PANEL HEIGHT
60mm (2.36")

POWER REQUIREMENTS
120V, 60Hz

POWER CONSUMPTION
220W

NET WEIGHT
5.9kg (13lbs.)

BTU RATING (4Ω, 1/8th power)
311 BTU/h



*This information has been obtained from Manufacturers website. We advise that Features & Specifications are subject change without notice.

E&OE
