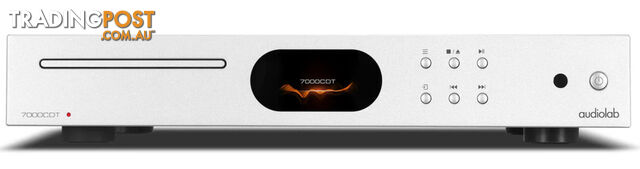

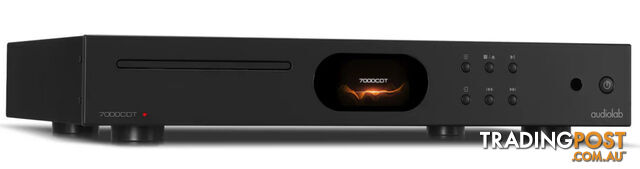

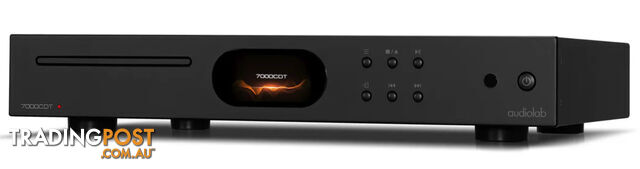

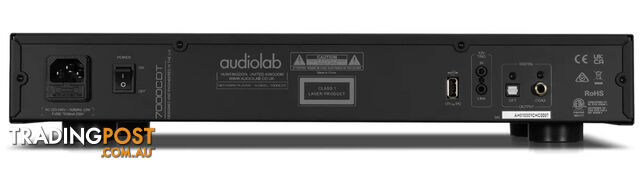

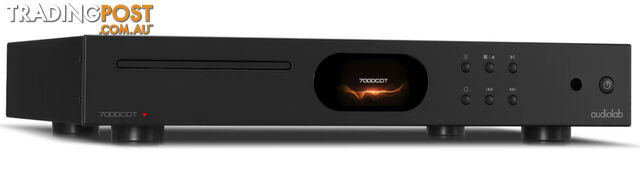

Audiolab 7000CDT CD Transport

Presenting the 7000CDT

CD Transport from Audiolab

Outwardly resembling the sequential series and therefore offering a brand-wide visual aesthetic match, the audiolab 7000CDT improves on the 6000CDT with a new mechanism, USB HDD playback and a new full-colour IPS LCD screen.

The Audiolab 7000CDT CD Transport is more compact than the 9000 series and perfectly matched to the 6000 and 8300 series maintaining crisp ergonomics, high-quality engineering and the excellent all-round performance you've come to expect from Audiolab.

New Series, Same Superior Standards

The 7000CDT utilises a high-precision optical system with an electronic data buffer for accurate and seamless CD playback. Very similar technology to the 9000CDT, the 7000CDT uses a read-ahead digital buffer to reduce disc-reading failures, helping it plays scratched and damaged CDs that may be unreadable by conventional mechanisms.

To ensure a flawless signal reaches the accompanying DAC, the coaxial output of the 7000CDT is fed from a differential line driver. The master clock is controlled by a high-accuracy crystal oscillator thereby enabling the digital output from both coaxial and optical sockets to exhibit vanishingly low levels of jitter (digital distortion).

Isolation From Vibration

The low-friction loading tray, sturdy aluminium base and chassis of the 7000CDT work to tackle vibrations that are experienced due to the mechanics of a high-spin-velocity motor. Further, the transport is mounted in its own electromagnetically shielded enclosure with a dedicated power supply.

All of these contribute to the exemplary digital signal extraction, while the proven resonance reduction further improves performance and onward effect in ancillary Hi-Fi equipment and signal chains.

Digital Files in any Format

In addition to the class-leading CD playback design, the 7000CDT also offers digital music files compatibly via a dedicated USB Type A connection, to the rear of the unit. Every significant hi-res and lossless audio format is catered for, including WAV, AAC and WMA, as well as compressed legacy MP3 formats.

All On Display

Taking strong influence from the flagship 9000CDT, the 7000CDT improves over the 6000CDT with a full-colour 2.8" (48 x 64mm) IPS display with a detailed but simple-to-use GUI, offering a vivid representation of information including system settings, format, folder, track details and other data.

Technical Specifications
Design Philosophy and Core Technology
Compatible with CD/CD-R/CD-RW
Support playing USB storage devices (MP3/WMA/AAC/WAV)
Display indication
Adjustable screen brightness
Activate the device automatically via 12V trigger
Auto standby function can be turned on or off

USB Storage Device Audio Format
Support MP3, WMA, AAC, WAV format playback

USB Storage Device File System
Support FAT12, FAT16 and FAT32 format
Digital Output Amplitude
500±50mVpp
Frequency response
-0.01dB (20Hz-20kHz, ref.1kHz)
Output Impedance
75
Total Harmonic Distortion (THD)
Digital Output Interface

1 x Coaxial
1 x Optical

Max Sampling Rate
44.1 kHz

Standby Power Consumption
Power Requirements (according to regions)
220-240V - 50/60Hz
100-120V - 50/60Hz

Finishes
Black
Silver

Dimensions (W x H x D)
444 x 78 x 322 mm
