Wharfedale Diamond 12.1i Bookshelf Speakers

Meet the Diamond 12.1i Speaker pair
The Perfect Pair with a Stunning, Contemporary Edge!

Wharfedale is excited to introduce the updated DIAMOND 12i Series. This new series features luxurious, modern finishes and subtle acoustic improvements that build on the strong foundation of the original design.

The series now includes three beautiful new finishes that complement modern interiors:

All-Black: A deep, rich semi-matte finish that offers a sleek, contemporary look subtle and sophisticated.

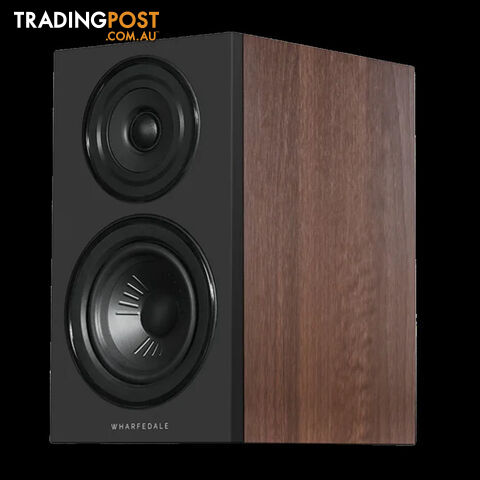

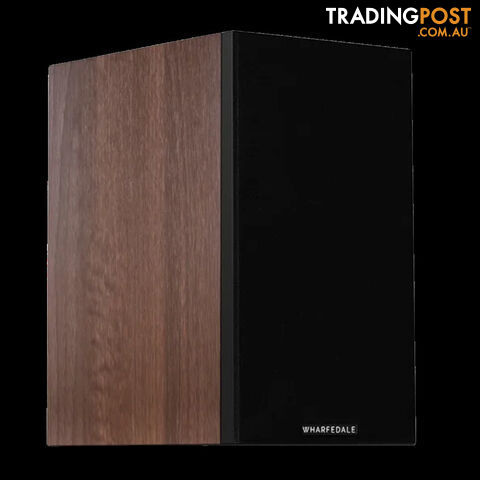

Classic Walnut with Semi Matte Black Baffle: A timeless classic reimagined, blending the natural warmth of walnut with a clean, contrasting baffle for a premium appearance.

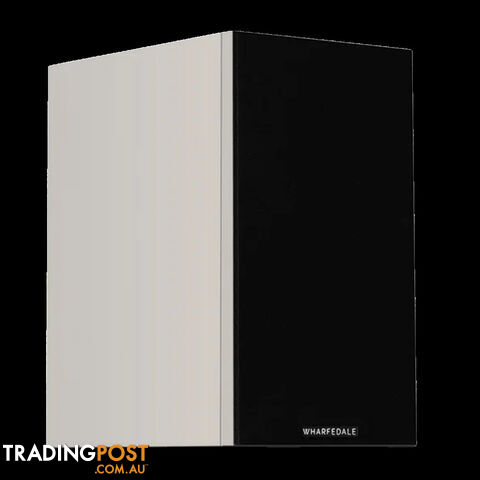

Stone Grey with Semi Matte Black Baffle: A striking modern option that suits minimalist styles and stands out.
More Than Skin Deep

Known for quality, affordability and exceptional build quality, the Wharfedale Diamond series has always prioritised fit and finish. The new luxurious matte finishes enhance the loudspeakers premium look and feel, matching its impressive sound performance.

Acoustic Enhancements

Along with the aesthetic upgrade, Wharfedales engineering team revisited the speakers internals, paying special attention to bass port tuning and airflow control. Small but significant changes to the port design and internal damping have improved bass clarity and low-frequency control, especially in real-world environments.

A thorough port design effort aimed to refine low-frequency performance through extensive empirical testing and listening evaluations was undertaken. The outcome is a bass response that is better controlled and more articulate, with improved transitions between low and mid frequencies and consistent spatial performance, no matter the placement.

These changes maintain the DIAMOND 12s signature neutrality while subtly increasing listener engagement and dynamic flow.

Klarity Cone Technology

The DIAMOND 12i mid/bass driver cones remain unchanged and are made from Klarity, a special blend of polypropylene and mica that provides excellent stiffness and low distortion. This results in a cone that is lightweight, well-damped, and very responsive, delivering natural, expressive dynamics and precise transient response.

A low-damping surround enhances the cones efficiency and dynamic range, while ribbed shaping and profile simulation ensure a smooth, linear frequency response without added distortion.

Advanced Magnet Assembly

Each mid/bass driver features a precise magnet system with an aluminium compensation ring to reduce the effects of inductance changes as the voice coil moves. This advanced motor system minimises intermodulation and distortion, producing cleaner, more accurate sound.

The voice coil is wrapped around a high-power epoxy/glass fibre bobbin, which performs significantly better than standard materials at this price point, offering greater power handling, thermal stability, and structural strength.

25mm Textile Dome Tweeter

High frequencies are produced by a 25mm woven polyester dome with a high-loss damping coating, resulting in extended, smooth treble response. The front plate is designed acoustically with a flat profile and minimal waveguide to enhance dispersion and output. The result is clear, natural high frequencies with excellent off-axis performance.

High-Quality Crossover Components

Wharfedales engineers use a sophisticated Linkwitz-Riley crossover design, complete with air-core inductors; components typically found in high-end speakers. The crossover network is finely adjusted for minimal phase shift and smooth integration between drivers.

The magnet structure for the mid/bass driver is modified to address the resistance of these high-quality inductors, ensuring fast, clean bass without compromise.

Low-Resonance Cabinet Design

Each enclosure features a multi-layered sandwich construction that reduces panel resonance and distortion. Even the adhesive properties between the layers have been acoustically tested to optimise damping.

Inside, intelligent spot bracing connects opposite cabinet walls using computer-modelled braces that reduce vibration without passing it from one surface to another. This contributes to the solid and authoritative sound signature of the Diamond 12i series.
Technical Specifications
Model
Diamond 12.1i
General description
2-way bookshelf speaker
Enclosure type
Bass reflex
Transducer complement
2-way
Bass driver
5" (130 mm) advanced PP cone
Treble driver
1" (25mm) textile dome
AV shield
No
Sensitivity (2.83V @ 1m)
88 dB
Recommended amplifier power
20100 W
Peak SPL
96 dB
Nominal impedance
8 compatible
Minimum impedance
4.0
Frequency response (±3dB)
65 Hz 20 kHz
Bass extension (-6dB)
60 Hz
Crossover frequency
2.6 kHz
Cabinet volume
8.2 L
Dimensions H x W x D
312 x 180 x (250 + 28) mm
Net weight
6.8 kg per speaker
*This information has been obtained from Manufacturers website. We advise that Price, Features & Specifications are subject change without notice.

E&OE
