REL T/5x Subwoofer in High Gloss Black

Meet the REL T/5x Subwoofer

Designed for Elegance - beautifully Black

STUNNINGLY SIMPLE

Perfect for small and medium rooms, T/5x seats perfectly into any décor. Floor-firing is part of its secret; bass energy strikes the floor and spreads uniformly throughout the space making it perform like a larger model. For those picky about style, the hidden bonus is this design eliminates even the grill, rendering it the purest of forms.

Slightly larger in volume than its predecessor, it actually appears to be smaller due subtle design changes to minimise its visual presence.

Finally, 5 hand polished coats of lacquer in your choice of High Gloss White or Piano Black add luster to the softly rounded cabinetry.

A 360-DEGREE UPGRADE

Many dont realise the intense linkage between performance and design at REL. Performance is everything and so it drives physical design revisions.

REL's engineers, recognising the need for greater acoustic volume to achieve the goals of greater fluidity and power, turn to the designer who works dimensions to fool the eye into seeing a smaller, more compact footprint even though cabinet volume increases.

Using gently rounded corner radii that allows the eye to flow over and see less visual mass. The result is both modern and familiar with no unnecessary adornment.

Faster & Deeper
SWIFT

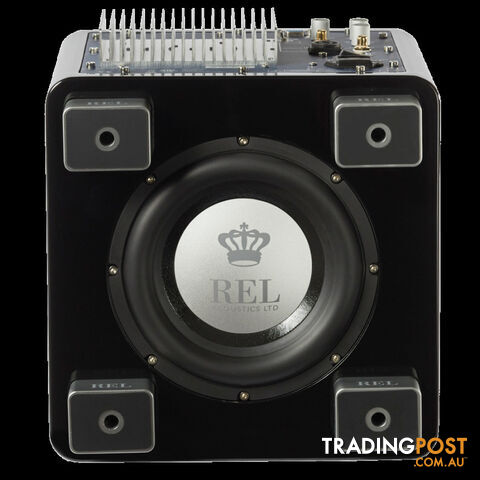

T/5x borrows a single longthrow 8 (200mm) bass engine from its elder sibling, T/7x. Developed using a composite of aluminium and light paper, this cone captures details that will amaze, while supplying sufficient energy to plumb deeper than one would expect for its size. In T/5x, its throwthe ability to play louderhas been increased. Internally, the suspension received numerous upgrades akin to transforming the handling of a car from a family sedan to a true sports car. More power, greater finesse.

Amplified Power
REL'S RELIABLE BRAINS AND BRAWN

T/5x builds on its predecessors reliable, expensive 125 W Class A/B amplifiers. Internally, key items significant to upgrading transparency and speed have been upgraded at no cost to RELs legendary reliability.

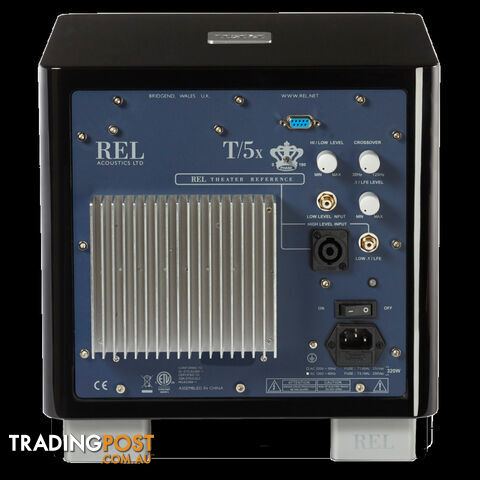

Separate inputs for High Level Inputs, Low Level Input (necessary for the increasing number of powered active speakers emerging on the market) allow for a natural, perfect transition from speaker to subwoofer. And in theatre a separate, dedicated .1/LFE Input for Theatre performance permits automatic transition between music in high end 2-channel applications and home theatre without needing to change a single setting. Magic? No, superior engineering.

Standby Mode switch is only included on 220V units.

Technical Specifications

TYPE
Closed Box, down-firing driver

ACTIVE DRIVER SIZE & MATERIAL
8 in. FibreAlloy,
200mm long-throw
inverted alloy dust cap
steel chassis

PASSIVE RADIATOR SIZE & MATERIAL
N/A

LOW FREQUENCY EXTENSION
-6dB at 32 Hz

INPUT CONNECTORS
High Level Neutrik Speakon
Low Level single RCA
LFE RCA

OUTPUT CONNECTORS
N/A

POWER OUTPUT
125 watts (RMS)

AMPLIFIER TYPE
Class A/B

WIRELESS CAPABILITY
Arrow (Optional), Zero Compression, Single Large Scale Integrated Chip

Protection System

FULLY ELECTRONIC SET SAFE
Yes

D.C. FAULT
Yes

OUTPUT SHORT
Yes

MAINS INPUT VOLTAGE
220-240 volts, 110-120 volts for certain markets

FUSES
1.6 Amp semi delay 230 volts operation
3.15 Amp semi delay 115 volts operation

Dimensions (W x H x D)
11.8 x 12 x 12.3 in., (300 x 307 x 313 mm)

NET WEIGHT
31.5 lbs. (14.3 kg)

AVAILABLE FINISHES
High Gloss Black
High Gloss White, 5 coats

Included Accessories
Mains Lead
Neutrik Speakon Interconnect - 10 Metres Nominal
Users Manual
*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change from Manufacturer without notice.

E&OE
