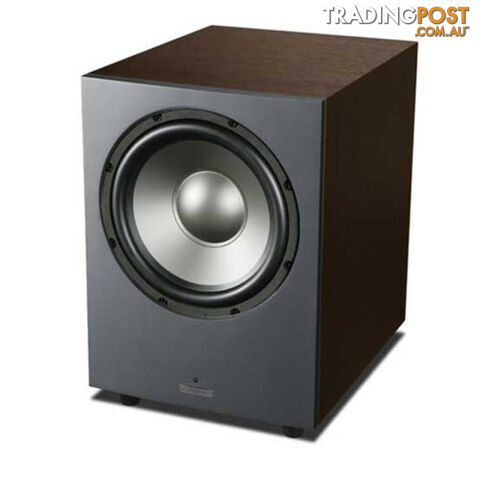

Mission LX-10SUB MKII Active Dynamic Drive IB Subwoofer in Walnut

Meet the LX-10SUB MKII in Walnut Pearl

Power and Precision Unite

Mission is proud to introduce the LX-10SUB MKII to complement the latest LX MKII Series of loudspeakers.

Perfect for a LX MKII Series home-theatre system or musical bass extension in 2-channel applications, the LX-10SUB MKII utilises a 10-inch (250mm) long throw bass driver with astounding bass impact. Based on the same award-winning system found in the best-selling ZX-12SUB, the LX-10SUB MKII also sports fantastic new Lux Black and Lux White finish options, as well as classic walnut pearl, to perfectly match the aesthetics of the stunning LX MKII Series loudspeakers.

High Powered Precision

High Power Amplifier
The built-in amplifier is optimised for high impact at low frequencies. The fast response and high-power performance is perfect for movies or music.

No-Presses Paper Cones
A specially engineered 10-inch (250mm) paper cone with increased self-damping properties offers an increased structural rigidity of the cone itself, for a fuller performance and massive bass impact.


Active Dynamic Drive

Low Pass Filter Slope
A continuously adjustable slop, from 35Hz to 150Hz (@33dB), enables seamless acoustic integration with your speaker’s performance

High Sensitivity & Versatility
Low level inputs, output connections and a dedicated LFE input are provided. Additionally, the auto power sensor is sensitive enough to detect incoming signals of extremely low level for automatic activation of the subwoofer, when required.

Technical Specifications

Description
Active Dynamic-Drive IB Subwoofer System

Drive Units
1 x (10") 250mm Cone Long-throwTransducer complement

Frequency response (+/-3dB)
40- 200Hz ±3dB

Amplifier Power Output
200 W

Peak Power Output
350 W

Line Input Sensitivity
200mv For Maximum Output

Crossover Range
30 - 150Hz

Inputs
Stereo Line In (2 x RCA Phono)
Mono (LFE) Line In (RCA Phono)

Input Impedance
Line Input 10kΩ
LFE 5kΩPeak SPL

Signal-to-noise Ratio (S/N)
≥5dB

Avg. Max Output @1m
110 dB

Features
Phase inversion, Auto on-off

Finishes
Lux Black Matte
Lux White Matte
Walnut Pearl

Dimensions (H x W x D)
412 (+ 35 with feet) x 312 x 392mm (+ 8mm with terminals)

Weight
16 kg







*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change without notice.

E&OE
