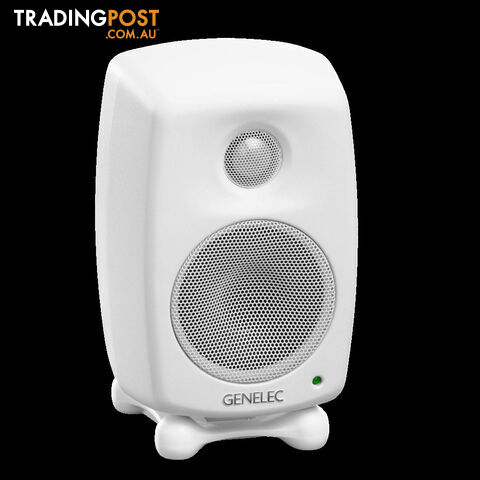

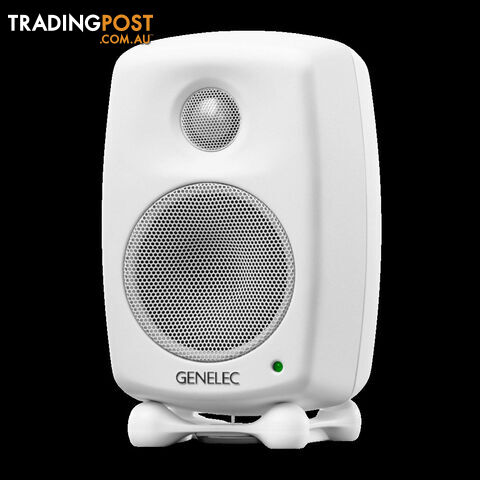

Genelec 8010A 3" Two Way Active Studio Monitor Pair

Introducing the 8010 Active Studio Monitor Pair

Compact in Size, but not in Quality

The 8010A squeezes true reference performance and extended frequency response into an extremely compact package, featuring  renowned Genelec accuracy and reliability, this monitoris so compact it was made for the road so now you can work where you need to and how you want to.

No matter where you need to mix, Genelec 8010A active monitors will make themselves at home with an outstanding combination of compact dimensions, accurate reproduction and powerful SPL.

Designed for simplicity, the 8010A is as comfortable in a hotel room, a broadcast van or a small studio, with dedicated mounting accessories for each application. Each active monitor comprises balanced XLR inputs, a 3 inch woofer, a 3/4 inch tweeter and two efficient Class D power amplifiers. Genelec Intelligent Signal Sensing (ISS™) circuitry is also included, ensuring that when your system is not in use, your monitors switch into an environmentally friendly, power-saving stand-by mode. Wherever you work, the 8010A is your ideal travelling companion.

Small size, huge performance

When studio space is limited or you record on the move, the 8010A is your reliable monitoring companion. Don’t be fooled by its affordable price tag and modest dimensions, the 8010A is every bit a Genelec pro monitor: uncoloured, accurate and powerful.

Trust is everything

A combination of enclosure, driver and electronic design gives the 8010A extremely neutral characteristics and the ability to adapt to your space via simple rear panel room compensation switches. So whether you’re in a bedroom studio, hotel room or OB van, you can always trust what you’re hearing.

Key Features
Directivity Control Waveguide (DCW™) Technology
Minimum Diffraction Enclosure (MDE™) Technology
Reflex Port Design
Room Response Compensation
Optimized Amplifiers
Active Crossovers
Protection Circuitry
Intelligent Signal Sensing (ISS™) Technology
Iso-Pod™ Stand
Versatile Mountings
Technical Specifications

Frequency Response
74 Hz - 20 kHz (± 2.5 dB)

Low cutoff -6dB
67 Hz

High cutoff -6dB
25 kHz

SPL

Peak SPL
≥105 dB
Maximum peak acoustic output per pair on top of console, at 1 m distance with music materia

Short term max SPL
≥96 dB
Max. short term sine wave acoustic output on axis in half space, averaged from 100 Hz to 3 kHz, at 1m distance.

Long term max SPL
≥91 dB
Maximum long term RMS acoustic output in same conditions with IEC weighted noise (limited by driver unit protection circuit) @ 1m.

Self-generated noise
≤5 dB SPL
Self generated noise level in free field at 1m on axis (A-weighted)

Enclosure

Enclosure material
Die cas aluminium

Enclosure type
Reflex port

Drivers

BASS

Driver type
Cone

Diameter
76 mm (3 in)

TREBLE
Driver type
Metal dome

Diameter
19 mm (3/4 in)

Harmonic distortion
70…400 Hz ≤3 %
> 400 Hz ≤0.5 %

Amplifiers

8010A bass amplifier
25 W Class D

8010A treble amplifier
25 W Class D

Mains voltage
100-240 VAC 50/60Hz

Power consumption

ISS Active
≤0.5 W

Idle
≤5 W

Full output
30 W

Connectors

Input
XLR female, 7 kOhm.

Crossover

Bass/Treble
3000 Hz

Dimensions
H 181 (with Iso-Pod 195 mm) x W 121 x D 115 mm

Weight
1.5 kg each

Finishes
White
Dark Grey
Raw
Black (Special Order)

Warranty
Includes a 2-year warranty, plus an additional 3-year extended warranty when registered on MyGenelec.

In the Box

2 x 8010A monitors
1 x mains cable 1,8 m
1 x operating manual
1 x IsoPod kit
