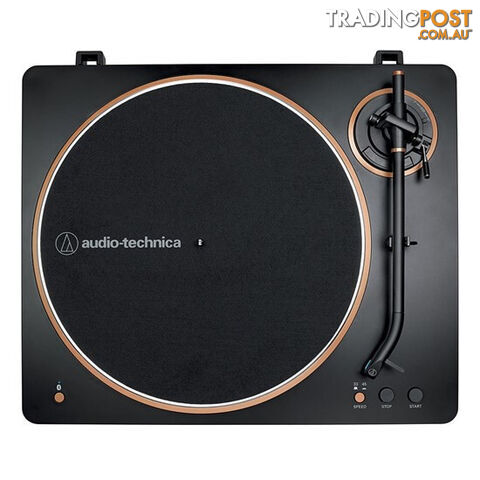

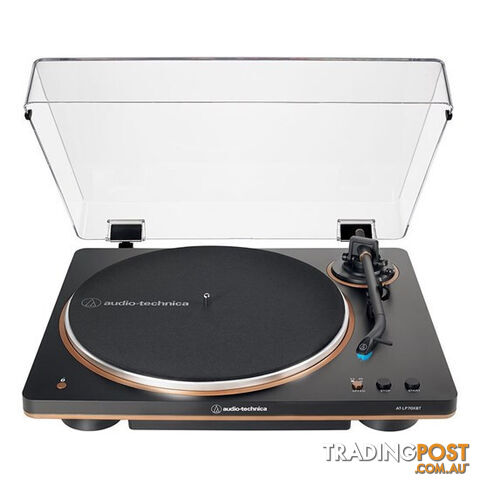

AT LP70XBT Automatic Bluetooth Turntable

Introducing the AT LP70XBT, Now also in White and Silver

Automatic Bluetooth Turntable from Audio Technica

The AT-LP70XBT Fully Automatic Belt-Drive Turntable is the perfect turntable for those beginning their audiophile journey. Designed to offer a quality sound experience for those who love listening to records, from flipping through albums at the record store to placing a record on the turntable, cueing the tonearm, and sitting back with the album art in hand to enjoy music as the artist intended.

Combining the experience of warm, analog audio with user-friendly features, this turntable plays both 33-1/3 and 45 RPM records. It has a built-in switchable phono preamp that allows the turntable to connect to a home stereo, powered speakers, or another component, with or without a dedicated phono input, with the AT-LP70XBT featuring Bluetooth wireless connectivity.

Product Features
Fully automatic belt-drive turntable operation with two speeds: 33-1/3, 45 RPM
High-fidelity audio with Bluetooth wireless technology
Connects wirelessly to speakers and other devices equipped with Bluetooth wireless technology or to wired audio systems and powered speakers via included dual RCA output cable
Compatible with the high-quality Qualcomm® aptX Adaptive audio codec
A fixed-body AT-VM95C Integral Dual Moving Magnet phono cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application
Stylish three-piece chassis construction dampens resonance for improved sound quality*
J-shaped tonearm is engineered to minimise tracking errors
Tonearm lock reduces risk of stylus damage
Built-in switchable phono/line pre-amplifier
Anti-resonance, die-cast aluminium platter with felt mat
AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain
Includes detachable RCA output cable (dual RCA male to dual RCA male with ground), 45 RPM adapter, and removable hinged dust cover

Technical Specifications
Turntable

Motor
C Motor

Drive Method
Belt Drive

Speed
33 RPM, 45 RPM

Turntable Platter
Die-Cast Aluminium

Wow and Flutter
Signal-To-Noise Ratio
> 55 dB

Output level

Phono
4.0 mV nominal at 1 kHz, 5 cm/sec

Line
252 mV nominal at 1 kHz, 5 cm/sec

Phono Pre-Amp Gain
36 dB nominal, RIAA equalised

Tonearm

Effective Length
220 mm (8.7)

Overhang
18 mm (0.71)

Maximum Tracking Error Angle
Less than 2.0°

Cartridge

Cartridge Model
AT-VM95C

Cartridge Type
Moving Magnet

Recommended Load Impedance
47,000 ohms

Output Voltage
4.0 mV (mV at 1 kHz, 5 cm/sec)

Stylus
0.6 mil Bonded Conical

Cantilever
Aluminium Pipe

AC Adaptor

Type
FJ-SW1261200500DN

Rated Input Voltage
100 to 240 V AC

Rated Input Current
0.4 A max

Rated Frequency
50 Hz / 60 Hz

Rated Output Voltage
12 V DC

Rated Secondary Current
0.5 A

Cable Length
Approx. 1.5m

Communication

Communication System
Bluetooth version 5.2

RF Output
2.5 mW EIRP

Maximum Communication Range
Line of sight - approx. 10m

Frequency Band
2.402 GHz to 2.480 GHz

Modulation Method
GFSK, Pi/4DQPSK, 8DPSK

Compatible Bluetooth Profile
A2DP

Supported Code
Qualcomm® aptX Adaptive Audio
Qualcomm® aptX Audio
SBC

General

Replacement Stylus
AT-VMN95C (Sold Separately)

Power Consumption
1.6 W

Available Finishes
Black/Silver
Black/Bronze
White/Silver

Dimensions
400 x 110 x 330mm

In the Box

Audio Technica AT LP70XBT Automatic Bluetooth Turntable
Dust Cover and Dust Cover Hinges
Felt Mat
Platter (with Drive Belt)
45 RPM Adapter
RCA Audio Cable (approx. 1.0m)
AC Adapter (approx. 1.5m)
*This information has been obtained from Manufacturers website. We advise that Price, Features & Specifications are subject change from Manufacturer without notice.

E&OE
