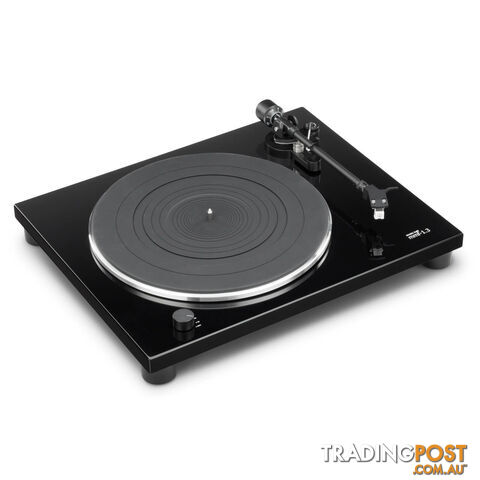

Music Hall MMF-1.3 Turntable

Meet the MMF 1.3 Turntable

Perfect warmth and Depth from Music Hall

The Music Hall MMF-1.3 sets a new benchmark for affordable audiophile turntables, adding depth and warmth to your music experience with.  With a Built-In Phono Preamplifier and a quality, pre-mounted cartridge, the MMF-1.3 is everything you need to start listening to vinyl right out of the box.

The MMF1.3 has been designed to deliver Music Hall's trademark best-in-class sound quality thanks to its inherently stable, well isolated and superbly engineered platform, with the addition of sought-after features including electronic three-speed control and inbuilt phono preamp. A pre-mounted cartridge and removable headshell means set up and operation couldn't be simpler.

The music hall MMF-1.3 turntable is a three speed, belt driven, high quality record player at an affordable price. The construction of the MMF-1.3 focuses on simplicity, quality and convenience, incorporating high performance components, electronic speed control, inbuilt phono pre-amplifier and a high quality cartridge and diamond stylus.

Product Features
Three-speed, low noise fully manual turntable
Pre-mounted & aligned AT 3600L MM cartridge
Aluminium tonearm with removable headshell for superb tracking ability
Belt drive, with electronic speed switching: 33/45/78 RPM
Inbuilt, defeatable Phono preamp allows connection to normal line level/AUX inputs
Ultra precise frequency DC driven AC generator for ultimate speed stability
Cover included
Focus on Components

This new entry-level turntable provides a feature set that is unrivalled at its price. The construction of the MMF-1.3 has been simplified to focus on the critical components; the bearing, the motor, and the tonearm.

A Complete Package

A 3-speed belt driven turntable that comes complete with a tonearm, mounted cartridge, and built-in phono amp.  The included Audio Technica AT3600L cartridge has been precision aligned.

Pre-Mounted Cartridge

A quality Audio-Technica cartridge is pre-mounted and precision-aligned.

Speed Control

A built-in speed control circuit ensures the accuracy of the mmf-1.3’s 3 speeds.

Built-In Phono Preamplifier

A built-in phono preamplifier allows you to connect directly to your current system.

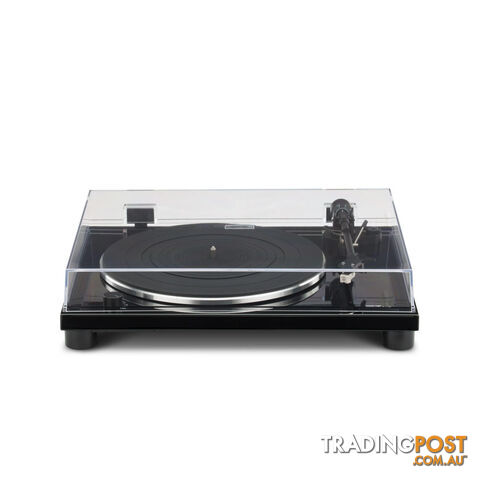

Dust Cover

A hinged dust cover keeps your MMF-1.3 protected when not in use.

Product Features
belt drive
electronic speed controlled motor
33 1⁄3, 45, and 78 rpm
aluminium tonearm with removable headshell
piano black MDF plinth
vibration-damping rubber platter mat
Audio Technica AT3600L cartridge ($50 value)
aluminium platter
dust cover
built-in phono pre-amp
removable RCA cables
vibration damping feet
Technical Specifications
General

Power Supply
DC12V，2.0A universal power supply

Consumption
4W

Dimensions (W x D x H)
435 x 367 x 106 mm

Weight
5Kg

Turntable

Type
3 speed full manual

Motor
DC motor

Drive
Belt Drive

Turntable Platter
296 mm dia. aluminum die-cast

Speeds
33 1/3, 45, and 78rpm

Wow and Flutter
Typical: less than 0.1% WTD at 3KHz RMS (CD-4005)

Limit
Less than 0.15% WTD at 3KHz RMS (CD-4005)

Signal To Noise Ratio
more than 62dB (DIN-B) (SS-4242)

Speed Tolerance
3000Hz +/-1%(CD-4005)

Power Supply
DC12V, 2.0A Universal PSU

Power Consumption
4W

Tonearm Type
Dynamic balanced straight-shaped with soft damping control

Effective arm length
221.5 mm

Overhang
19 mm

Offset angle
25.61

Tracking error angle
3 degrees or less

Stylus pressure adjustment method
Rotation movability

Arm lifter
Oil damper



*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change without notice.

E&OE
