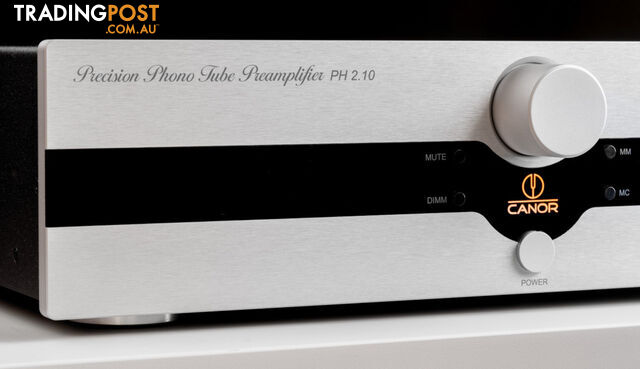

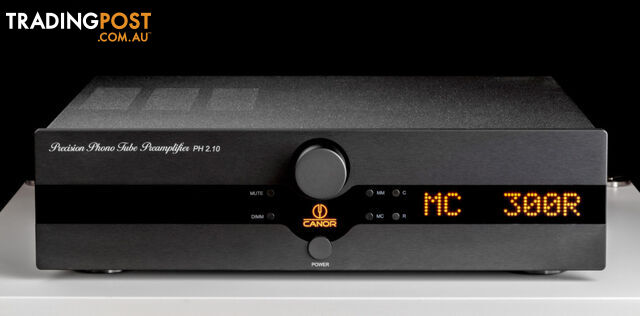

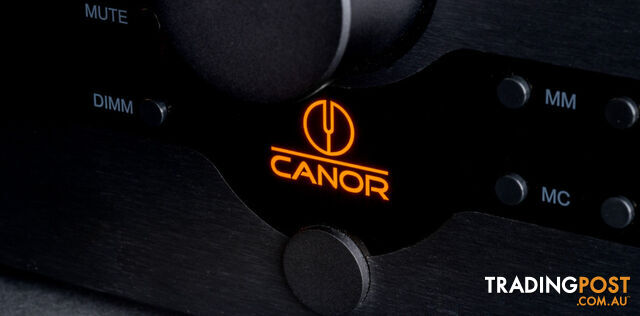

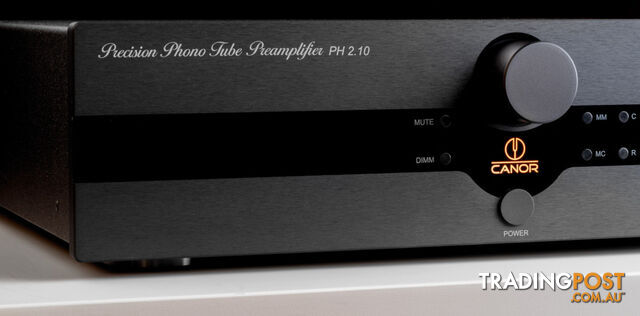

Canor PH 2.10 Tube Phono Preamplifier

Meet the sublime PH 2.10 from Canor

The Performance Line Tube Phono Preamplifier



CANOR PH 2.10 is an all-tube phono preamplifier for MM and MC cartridges, containing the minimum number of amplification steps required to apply purely passive corrections.

Highlights
Without any global feedback, which results in excellent sound performance
It contains the minimum number of amplification steps required to apply purely passive corrections
Designed for both MM and MC cartridges with high variability of resistances and capacitances settings

No Global Feedback

The whole connection is without any global feedback, which results in excellent sound performance, but it places extremely high demands on the selection of used electronics. The RIAA correction is passive and consists only of quality polystyrene and polypropylene capacitors. The output capacitor is also of high quality (polypropylene foil)


Power Transformer

To remove mechanical hum, the transformer core is vacuum impregnated, and the entire transformer is encapsulated in a special anti-vibration compound. In addition, the massive, welded cover in which the transformer is located creates effective electromagnetic shielding and contributes significantly to the excellent signal-to-hum distance.


For both MM and MC

If the turntable contains two arms and an MM cartridge is installed on one and an MC on the other, they can be connected at the same time without any interference

CMT ™ technology

The use of CMT ™ technology (CANOR ® PCB Milling Technology) was a matter of course in the design of Canor PH 2.10 printed circuit boards.
Because very small signal amplitudes are processed in the turntable preamplifier, this technology has been even more beneficial than in our other products.

Product features
an all-tube turntable preamplifier for both MM and MC phono cartridges
nine tubes, one vacuum tube out of them used to rectify anode voltage
wiring circuitry without any global feedback
PCB’s utilise our premium CMT ™ technology
absolute selection and tubes matching with above-average parameters
vacuum-impregnated transformer core
transformer potted in a special anti-vibration compound
we only use high-quality polypropylene capacitors in the signal path
if a turntable is fitted with two tonearms, one having MM phono cartridge installed and the other MC, both can be connected simultaneously without mutually affecting each other
high variability of gain settings, resistances and capacitances settings for all types of phono cartridges
a high-quality step-up Lundahl transformer for MC phono cartridges
Technical Specifications

Load capacity MM / Gain
50, 150, 270, 370, 520, 620, 740, 840 pF / Gain: 46 dB

Input impedance MC1 / Gain
10, 20, 40, 80, 150, 300, 600, 1.200 Ω / Gain: 70 dB

Input impedance MC2 / Gain
2, 5, 10, 20, 40, 80, 150, 300 Ω / Gain: 76 dB

Output impedance
Input / Output
RCA

Total Harmonic Distortion
MM / MC

Subsonic Filter / Threshold Frequency
18 dB / Octave / 18 Hz

RIAA accuracy
0.3 dB / 20 Hz – 20 kHz

Signal-to-noise ratio MM
84 dB

Signal-to-noise ratio MC
80 dB

Tube complement
2 x 12AX7, 2 x 12AT7WC

Power
230 V / 50 Hz / 50 VA

Dimensions (w x h x d)
435 x 120 x 405 mm

Weight (net)
14 kg
