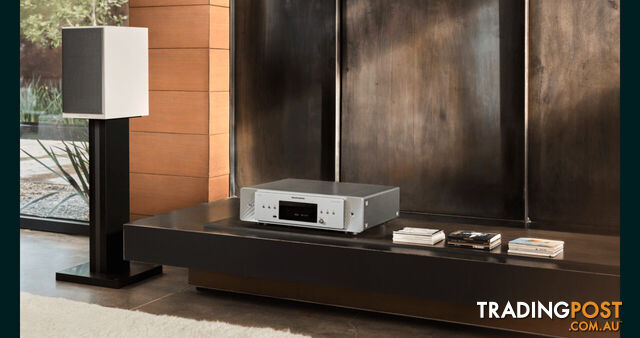

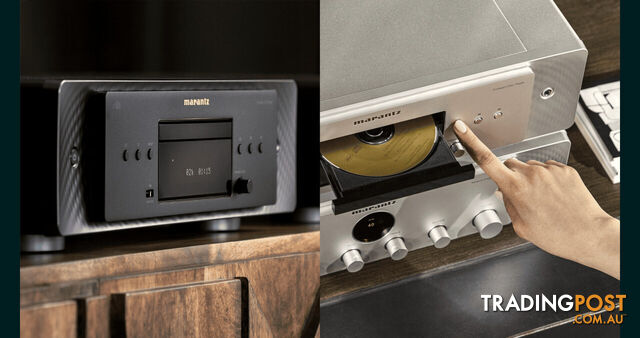

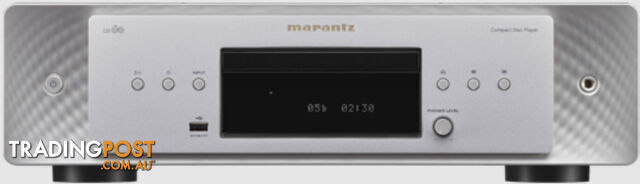

Marantz CD60 CD Player

Introducing the Marantz CD60 CD Player

Rich, Warm, and Spacious Sound

Expertly tuned by the legendary Marantz Sound Master for The Most Musical Sound. CD 60 is the CD player your cherished collection deserves

Optimised HDAM Circuit

In the CD 60, the proprietary HDAM circuit has been further optimised from its previous version by placing the parts symmetrically on the audio board and creating a more direct signal path. This update improves the sound stage from the previous models in pursuit of The Most Musical Sound.

High-Current Power Supply

The CD 60 power supply uses high speed, high-current Schottky barrier diodes, higher value current storage capacitors and improved voltage regulators compared to predecessor models in this class. Oversize capacitors in the power supply improve current stability and reduced noise during highly demanding listening sessions.

Plays Hi-Res Audio USB Sources

The CD 60 can play back MP3, WMA, AAC and WAV, FLAC HD, ALAC, AIFF (up to 192-kHz/24bit), and DSD (up to 5.6- MHz) files from a connected USB storage device.

Technical Specifications
Unit (W x H x D mm) 442 x 129 x 396
Net weight 7.5kg
Packaging Dimensions (W x H x D mm) 525×249×511
Panel Colour Available Colours: Silver/Gold and Marantz Black
Front (Centre) Panel Aluminium
Frequency response USB DSD: 2Hz - 50kHz (-3dB)
USB PCM: 2Hz - 50kHz (-1.5dB)
CD: 2Hz - 20kHz
Total Harmonic Distortion USB DSD: 0.0006%
USB PCM 24bit: 0.0005%
CD: 0.0015%
Signal to Noise Ratio USB DSD: 110dB
USB PCM 24bit: 118dB
CD: 118dB
Dynamic Range USB DSD: 110dB
USB PCM 24bit: 118dB
CD: 101dB
Line Output Level 2.2Vrms
Headphone Output Level 28mW / 32 ohms
Power Consumption 38W
at Standby 0.3W
Audio Features

HDAM New HDAM + HDAM-SA2
Power Transformer EI
Headphone Amp High slew rate op-amp
+ HDAM-SA2
H/P Amp Gain Setting Yes (Low / Mid / High)
Digital Filter Filter 1, 2 Selectable
Connectivity / Playback Capability

CD Compatibility CD / CD-R/RW / WMA / MP3 / AAC
Data Disc Compatibility DSD / WAV / ALAC
Fixed Analog Output (RCA) 1 (Gold Plated)
Optical input / output
(Maximum Support) 0 / 1
Coaxial input / output
(Maximum Support) 0 / 1
Headphone Output 1
Remote Control Bus Terminal Yes (RC-5 In / Out)
w/ External / Internal Select Switch
Flasher Input Yes (U ver)
USB A 1 (Front)
Mass Storage Class
5V/1A
Support format FAT 16/32
USB-A: FLAC / WAV / AIFF / ALAC / DSD Yes / Yes / Yes / Yes
DSD Native Playback Yes
USB Firmware Update Yes
Easy to use

Remote Controller System Remote
(Amp and CD Player Control)
Unit control (Button) POWER, Play/Pause, Stop, Input, Open/Close, Fwd, Rev
Unit control (Knob) 1
Phones Level
Dimmer for Front Display Bright / Dim / Dark / Off
Control with App via Network Player

(Use Remote Control Bus)

Yes
Last Function Memory Yes
Timer Play (Need external audio timer) Yes
On/Off selectable in Menu
Auto Standby Mode Yes
Other Stereo RCA Cable x1
Remote connector cable x1
Accessory Box Yes
Battery Yes (AAA x2)
Power Cord Yes
*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change from Manufacturer without notice.

E&OE
