Rotel CD11 MKII CD Player

Meet the incomparable CD11 MKII



CD Player from Rotel

The CD11MKII CD Player continues Rotel's decades long tradition of providing reliable, superior quality CD players at an affordable price point.

The CD11MKII includes upgrades to Rotel’s hugely successful Tribute Series model which was inspired by - and co-operatively engineered with - the late Ken Ishiwata. The new product seeks to enhance the performance of its predecessor while remaining faithful to Ken’s design philosophy and continue to proudly pay homage to Ishiwata san’s 40+ year legacy in the audio business.

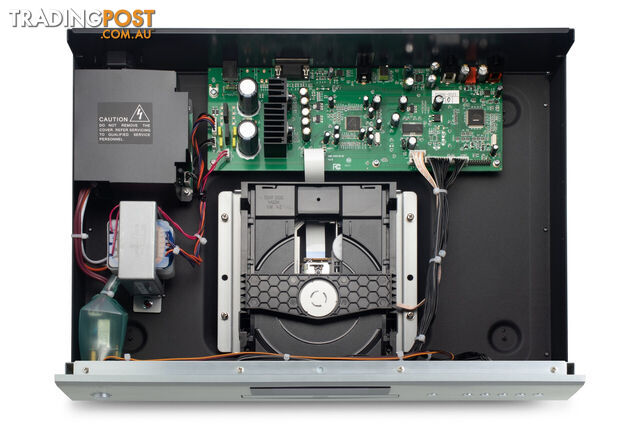

The heavy steel chassis supports a proprietary Rotel disc transport exclusively for the playback of compact discs. The CD11MKII’s smooth, tray-loading mechanism, precise laser pickup and silent running motor controller ensures seamless playback of your CD collection.

Digital to Analog conversion is handled by a premium Texas Instruments PCM5102A 32-bit/384kHz DAC feeding custom-tuned digital low pass filter circuits. This sound-first design renders music on a large, open sound stage with both power and finesse.

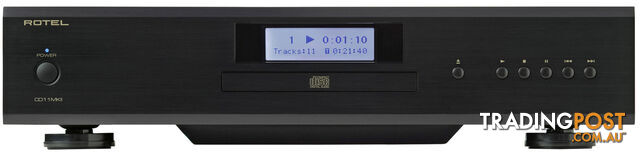

Intuitive CD control functions on the front panel and included remote control ensure simple operation. The front panel graphic display shows playback status and disc meta data information including the title and artist.

Product Features
Smooth tray loading CD mechanism

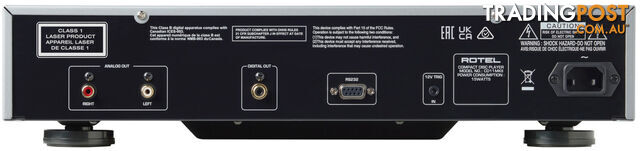

Outputs including RCA analogue and Coaxial digital
Texas Instruments premium 32-bit/384kHz Digital to Analog Converter
RS232 and 12V trigger input
Front panel display and IR Remote

Technical Specifications
DIMENSIONS (W × H × D)
430 × 98 × 314mm
17" × 3.8" × 12.4"

FRONT PANEL HEIGHT
80mm (3.15")

POWER REQUIREMENTS
120V, 60Hz

POWER CONSUMPTION
15W

STANDBY POWER CONSUMPTION


NET WEIGHT
6.2kg (13.7lbs.)

BTU RATING
40 BTU/h

TOTAL HARMONIC DISTORTION + NOISE
0.009% @ 1kHz

FREQUENCY RESPONSE

20Hz - 20kHz ±0.5dB

S/N RATIO (IHF "A" Weighted)

>125dB

DYNAMIC RANGE

>99dB

DIGITAL TO ANALOG CONVERTERS
Texas Instruments

CHANNEL BALANCE
±0.5dB

CHANNEL SEPARATION
>115dB @ 10kHz



*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change without notice.

E&OE
