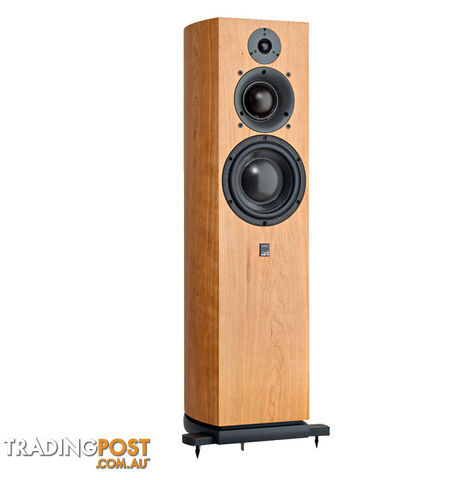

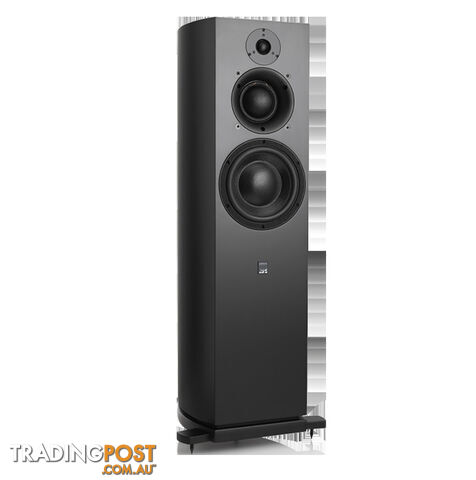

ATC SCM40 Passive Loudspeaker Pair

Meet the Stunning ATC SCM40 Passive Speakers

Floorstanding Speakers delivering Precision, Authority and Musical Integrity

When it comes to high‑fidelity loudspeakers that combine professional‑grade engineering with exceptional musical performance, the ATC SCM40 Passive Loudspeaker Pair stands out amongst the most respected in hi‑fi today.

Built with the same acoustic principles that have made ATC legendary in both studio monitoring and home audio, the SCM40 Passive Speakers offer a level of transparency, depth and control that rewards close listening — and keeps listeners coming back to familiar recordings with fresh insight.

True Three‑Way Engineering for Balanced Sound

Using a true three‑way driver configuration that dedicates separate transducers to high, mid and low frequencies they feature custom‑built ATC drivers — including a 25 mm soft‑dome tweeter with precision alloy waveguide, a 75 mm soft‑dome midrange and a 164 mm bass driver.  All work in harmony to deliver a smooth and coherent acoustic response from 48 Hz to 22 kHz. This careful division of labour ensures each frequency band is handled with clarity and authority, reducing distortion and enhancing detail.

Natural, Uncoloured Musicality

One of the many strengths of ATC loudspeakers is their neutral and truthful sound signature. Instead of colouring the music, the SCM40’s drivers and crossover system focus on faithful reproduction — so voices are lifelike, instruments have natural presence and dynamic contrasts feel real and engaging. This balanced performance makes the speakers equally capable with jazz, orchestral music, rock or electronic genres and particularly rewarding with high‑resolution recordings.

Designed to Work with a Wide Range of Amplifiers

The ATC SCM40 Passive Loudspeakers flat impedance curve and efficient crossover allow it to pair well with a broad range of quality amplifiers. With a nominal impedance of 8 ohm and a recommended power range from approximately 75 W to 300 W, these speakers deliver confident performance with both solid‑state and tube amplification.

They also reach a maximum sound pressure level (SPL) of around 112 dB, giving them the ability to fill generous living rooms with detail and impact.

A Thoughtful, Long‑Term Investment

Constructed with meticulous attention to detail, the SCM40 benefits from ATC’s decades of driver development and acoustic expertise. The rigid, well‑damped cabinets and high‑quality crossover components contribute to low coloration and extended performance longevity.

Each pair is built to last and backed by a robust 6 year manufacturer warranty, reflecting ATC’s commitment to reliability and durability.

About ATC

Founded in 1974 in the UK by Billy Woodman, ATC (Acoustic Transducer Company) is renowned for building some of the most accurate and dynamic loudspeakers in the world. Unlike many brands, ATC designs and manufactures its drive units entirely in-house, ensuring complete control over performance and consistency.

At the heart of many models is the legendary Soft Dome midrange driver, famous for its natural vocal reproduction and exceptionally low distortion. This clarity through the critical midband is why ATC loudspeakers are trusted in professional recording and mastering studios worldwide.

Available in both passive and fully active designs, ATC speakers prioritise neutrality, control and wide dynamic range. They are not voiced to flatter recordings — they are engineered to reveal them.

Built in England and backed by a six-year warranty, ATC loudspeakers are designed to deliver decades of musical accuracy and enjoyment.

Product Features
New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.
ATC 164mm bass driver.
Massive optimised motor assembly.
ATC Soft Dome mid-range driver.
Flat impedance curve allowing easy load for amplifiers.
Technical Specifications

Drivers
HF ATC 25mm Neodymium
Mid 75mm ATC Soft Dome
LF ATC 164mm SC

Matched Response
±0.5dB

Frequency Response (-6dB)
48Hz-22kHz

Dispersion
±80° Coherent Horizontal
±10° Coherent Vertical

Sensitivity
85dB @ 1W @ 1 metre

Max SPL
112 dB

Recommended Power Amplifier
75 to 300 Watts

Nominal Impedance
8 Ohm

Crossover Frequency
 380 Hz & 3.5 kHz

Connectors
Binding Posts/4 mm Plugs, bi-wire

Finishes
Cherry
Black Ash
Satin Black
Satin White

Cabinet Dimensions (H x W x D)
980 x 370 x 305 mm (inc. foot plinth, spikes add 25 mm to height, grill adds 34 mm to depth)
